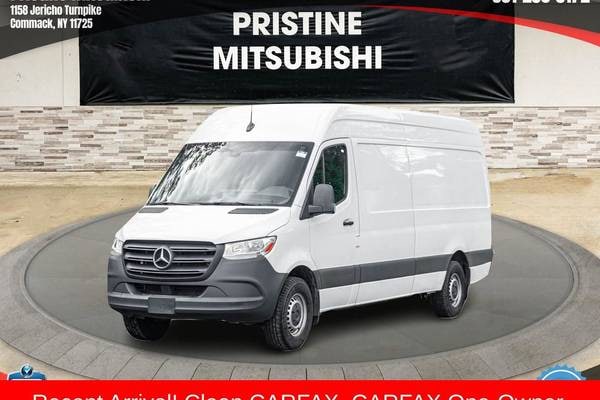

Used 2022 Mercedes-Benz Sprinter 2500 170" WB Cargo - Specs & Features
Starting MSRP
$50,660
| Overview Diesel | |
|---|---|
| Engine Type | Diesel |
| Transmission | 7-speed shiftable automatic |
| Drive Type | Rear wheel drive |
| Cylinders | V6 |
| Total Seating | 2 |
| Basic Warranty | 3 yr./ 36,000 mi. |
| Fuel & MPG | |
|---|---|
| Fuel type | Diesel fuel |
| Range in miles (city/hwy) | 0/0 mi. |
| Fuel tank capacity | 24.5 gal. |
| Engine | |
|---|---|
| Base engine size | 3.0 L |
| Cylinders | V6 |
| Base engine type | Diesel |
| Horsepower | 188 hp @ 3,800 rpm |
| Torque | 325 lb-ft @ 1,400 rpm |
| Valves | 24 |
| Cam type | Double overhead cam (DOHC) |
| Direct injection (diesel) | Standard |
| Towing & Hauling | |
|---|---|
| Max Towing Capacity | 5,000 lbs. |
| Max Payload Capacity | 3,781 lbs. |
| Drivetrain | |
|---|---|
| Transmission | 7-speed shiftable automatic |
| Drive type | Rear wheel drive |
| Suspension | |
|---|---|
| Front independent suspension | Standard |
| Stabilizer bar stabilizer bar | Standard |
| Dimensions | |
|---|---|
| Length | 274.3 in. |
| Overall width with mirrors | 92.3 in. |
| Overall width without mirrors | 79.5 in. |
| Height | 107.3 in. |
| Wheelbase | 170.0 in. |
| Cargo capacity, all seats in place | 488.1 cu.ft. |
| Maximum cargo capacity | 488.1 cu.ft. |
| Turning circle | 47.2 ft. |
| Curb weight | 5,269 lbs. |
| Maximum towing capacity | 5,000 lbs. |
| Maximum payload | 3,781 lbs. |
| Gross weight | 9,050 lbs. |
| Country of final assembly | Germany/United States |
| Colors | |
|---|---|
| Exterior Colors |
|
| Interior Colors |
|
| Front Seat Dimensions | |
|---|---|
| Front head room | 56.4 in. |
| Front leg room | 38.9 in. |
| Front shoulder room | 67.4 in. |
| Front hip room | 63.7 in. |
| Cloth | Standard |
| Bucket front seats | Standard |
| 4-way manual driver seat adjustments | Standard |
| 4-way manual passenger seat adjustment | Standard |
| Safety | |
|---|---|
| Pre-collision safety system | Standard |
| Post-collision safety system | Standard |
| Dual front side-mounted airbags | Standard |
| Front head airbags | Standard |
| Passenger airbag occupant sensing deactivation | Standard |
| Stability control | Standard |
| Traction control | Standard |
| 4-wheel ABS | Standard |
| Brake drying | Standard |
| Ventilated front disc / solid rear disc brakes | Standard |
| Emergency braking assist | Standard |
| Tire pressure monitoring | Standard |
| Dusk sensing headlamps | Standard |
| Daytime running lights | Standard |
| Turn signal mirrors | Standard |
| 2 front headrests | Standard |
| Front height adjustable headrests | Standard |
| Engine immobilizer | Standard |
| In-Car Entertainment | |
|---|---|
| AM/FM stereo | Standard |
| 80 watts stereo output | Standard |
| 5 total speakers | Standard |
| USB connection | Standard |
| Auxiliary audio input | Standard |
| Speed sensitive volume control | Standard |
| Power Feature | |
|---|---|
| Remote keyless power door locks | Standard |
| Heated mirrors | Standard |
| Comfort & Convenience | |
|---|---|
| Keyless ignition | Standard |
| Tilt-adjustable steering wheel | Standard |
| Audio and cruise controls on steering wheel | Standard |
| Power steering | Standard |
| Rear view camera | Standard |
| Cruise control | Standard |
| Front cupholders | Standard |
| Front door pockets | Standard |
| Single zone front air conditioning | Standard |
| Rear heater unit | Standard |
| Turn signal in mirrors | Standard |
| Instrumentation | |
|---|---|
| External temperature display | Standard |
| Tachometer | Standard |
| Clock | Standard |
| Tires & Wheels | |
|---|---|
| Steel wheels | Standard |
| 16 x 6.5 in. wheels | Standard |
| All season tires | Standard |
| LT245/75R16 tires | Standard |
| Fullsize matching spare tire | Standard |
| Underbody mounted spare tire | Standard |
| Telematics | |
|---|---|
| Emergency Service | Standard |
| Stolen Vehicle Tracking/Assistance | Standard |
| Roadside Assistance | Standard |
| Warranty | |
|---|---|
| Basic | 3 yr./ 36,000 mi. |
| Drivetrain | 5 yr./ 100,000 mi. |
| Rust | 3 yr./ unlimited mi. |
| Mechanical Options | |
|---|---|
| Electric Parking Brake | +$288 |
| Additional Bar For Driveshaft and Exhaust Extension | +$69 |
| Suspension For Comfort and Load Protection | +$241 |
| Front Axle Reinforced | +$357 |
| Stabilization Level I | +$307 |
| Stabilization Level II | +$723 |
| Speed Limitation 65 MPH | +$60 |
| Fuel Gauge | +$72 |
| Fuel-Fired Heater/Booster | +$676 |
| Spare Wheel Deletion | -$110 |
| Front Engine Bracket For Additional Alternator | +$482 |
| Spare Tire Carrier Deletion | +$0 |
| Bracket For Auxiliary AC Compressor | +$482 |
| Stabilization Level III | +$921 |
| ESP for increased Center of Gravity above 39.4" | +$0 |
| Top Speed Limitation at 75 MPH | +$60 |
| Engine Oil Level Display at Cold Start | +$0 |
| Fuel-Fired Pre-Heater/Booster | +$1,116 |
| Rear Spring Vibration Absorbers | +$138 |
| Packages | |
|---|---|
| Premium Plus Package | +$1,852 |
| Heavy-Duty Cargo Protection Package | +$2,043 |
| Suspension Seating Package | +$971 |
| Comfort Package | +$310 |
| Exterior Lighting Package | +$1,661 |
| Driver Convenience Package | +$785 |
| Premium Package | +$1,015 |
| C02 In Combination w/C03 | +$624 |
| Chrome Grille Package | +$300 |
| Swivel Seat Package | +$606 |
| Comfort Package (Seat Addition) | +$393 |
| Comfort Plus Package | +$1,986 |
| Cargo Protection Package | +$1,117 |
| Cargo Convenience Package | +$658 |
| Parking Package | +$635 |
| Parking Package w/360 Degree Camera | +$800 |
| Safety & Security Options | |
|---|---|
| Active Lane Keeping Assist | +$297 |
| Blind Spot Assist | +$465 |
| Folding Handbrake Lever | +$55 |
| Deactivation Lamp Monitoring Failure | +$27 |
| Rear Backup Alarm | +$99 |
| FMVSS 217 Emergency Exit | +$379 |
| Parking Package | +$635 |
| Emergency Flashlight | +$27 |
| First Aid Kit | +$27 |
| Attention Assist | +$49 |
| Extension of PSM Standard Contact | +$58 |
| Optional Three-Button Keys | +$36 |
| Rear View Camera (Head Unit Display) | +$347 |
| Security Alarm w/Interior Motion Sensor | +$584 |
| Interior Options | |
|---|---|
| Omission of D-Rings | -$15 |
| Floor Cover Behind Seat Box | +$27 |
| Cab Rear Wall Liner | +$360 |
| Pallet Support In Sliding Door Step | +$96 |
| Side Wall Paneling Waist Height PVC | +$319 |
| SiriusXM Satellite Radio | +$263 |
| Additional Battery, Co-Driver Seat Base | +$256 |
| Active Distance Assist DISTRONIC | +$272 |
| Comfort Overhead Control Panel | +$93 |
| Cargo Partition w/One Window | +$346 |
| Additional Battery For Retrofit Consumers, Engine Compartment | +$256 |
| Front Cigarette Lighter w/Ash Cup | +$39 |
| Electric Roof Fan | +$400 |
| Navigation | +$752 |
| Leather Steering Wheel | +$187 |
| Access Point For BB Special Signals In Cockpit | +$29 |
| Tray For Smartphones w/Wireless Charging | +$156 |
| Head Height Cargo Lashing Rails | +$415 |
| Side Wall Paneling Full Hardboard | +$444 |
| Light Motion Sensor In Rear Compartment | +$54 |
| Heavy-Duty Rear Air Conditioner | +$3,940 |
| Wheel House Covering | +$105 |
| Half Height Load Compartment Trim | +$201 |
| Protective Edge On Door Sill | +$71 |
| Storage Compartment w/Net In Rear Doors | +$127 |
| Orange Seat Belts | +$32 |
| Roof Trim | +$876 |
| Cargo Straps/Lashing Rails | +$104 |
| LED Light Strip In Load Compartment | +$263 |
| Waist Level Lashing Rails | +$277 |
| Heated Front Passenger Seat | +$284 |
| Plastic Floor Covering | +$382 |
| Shelving Prep | +$640 |
| Heated Driver's Seat | +$284 |
| Hinged Rear Doors Full Paneling | +$38 |
| Thermotronic Automatic Climate Control | +$337 |
| Lashing Rails, Floor-Level (Plus 4 Anchors) | +$345 |
| Front-to-Rear Outlet In Instrument Panel | +$0 |
| D-Ring Cargo Straps | +$81 |
| Window Pillar Trim | +$513 |
| Right Sliding Door Full Paneling | +$109 |
| Wood Floor w/6 D-Rings | +$422 |
| Acoustic Package | +$90 |
| Additional Fuses (40/80/80/100 Ampere) | +$50 |
| MBUX Multimedia 6-Hour Runtime | +$0 |
| Additional Fuses (40/80/150/100 Ampere) | +$50 |
| Additional DIN-Slot | +$81 |
| Heat Insulation Rear Compartment | +$156 |
| Interior Rear View Mirror | +$37 |
| Dashboard Charging Package | +$82 |
| Roof-Mounted Rear Air Conditioning | +$2,872 |
| Front Center Overhead Storage Slot | +$105 |
| Driver's Seat Plus | +$238 |
| Luxury Interior Trim | +$661 |
| Cutoff Relay For Additional Battery | +$114 |
| Instrument Cluster w/Color Display | +$144 |
| Rear Window Defroster | +$261 |
| Driver's and Co-Driver's Door Armrest | +$51 |
| Two Additional Masters Keys | +$121 |
| Parametric Special Module (PSM) | +$317 |
| Rear Heater Preparation | +$405 |
| Twin Front Passenger Seat | +$400 |
| Storage Net, Driver's Seat Backrest | +$64 |
| Heat Insulation Front Compartment | +$187 |
| Loadable Wheel Arch | +$375 |
| 12V Power Outlet, Rear Compartment | +$92 |
| Driver and Passenger Door-Mounted Assist Handles | +$59 |
| Hinged Lid For Storage Compartment | +$93 |
| Basic Electric Fitting For Rear Loadspeakers | +$68 |
| 115V Socket | +$125 |
| 360 Degree Camera | +$685 |
| Coat Hooks In Driver Cabin | +$14 |
| Rear Cabin Heater and Vents | +$786 |
| MBUX Multimedia System w/7‘‘ Touchscreen | +$474 |
| Cargo Partition | +$297 |
| 90 Degree Fixation Point - Rear Doors | +$80 |
| 12V Power Outlet, Drive Seat Base | +$92 |
| Storage Net, Passenger Seat Backrest | +$64 |
| Warm/Cool Air Duct to Rear Compartment | +$59 |
| Conversion to RV Requirement | +$0 |
| Exterior Options | |
|---|---|
| Assist Handle w/Partition | +$32 |
| Jet Black Painted Wheels | +$81 |
| Trailer Hitch, 5,000 lbs | +$152 |
| Two Stage Opening Sliding Door | +$82 |
| Assist Handles, Right Rear Door | +$32 |
| Half-Sided Step Rear (For Trailer Hitch) | +$101 |
| Kumho Tires | +$0 |
| B-Pillar Assist Handle | +$32 |
| Rear Doors, Opening to Side Wall | +$372 |
| Fixed Window In Right Sliding Door | +$145 |
| M+S Tires | +$169 |
| Electric Closing Assist Right Sliding Door (Soft Close) | +$346 |
| Specially Requested Tires | +$101 |
| Opening Limiter, Electrically Operated Sliding Door | +$120 |
| Raised Rear Body Mounts | +$252 |
| Michelin Tires | +$0 |
| Arctic White Painted Wheels | +$81 |
| Continental Tires | +$0 |
| Fixed Sunroof For Rear Roof Section | +$336 |
| Mounting Rails For Roof Rack | +$300 |
| Electrically Heated Windshield | +$225 |
| Primed Front and Rear Bumpers | +$268 |
| Illuminated Front Exits | +$156 |
| Black Tinted Rear Windows | +$138 |
| Rear Door Window w/Wash Wipers | +$335 |
| Assist Handle, Left Rear Door | +$32 |
| Fixed Window In Left Sliding Door | +$145 |
| Spring Loaded Rear Bumper Step | +$601 |
| Wide Step at Rear End | +$308 |
| Electrical Sliding Door Right | +$858 |
| Grey Rear Door Step | +$187 |
| Lockable DEF Fluid Filler Cap | +$27 |
| Windows In Rear Doors | +$96 |
| Right Rear Door Badging Deletion | +$0 |
| Misfueling Prevention for Diesel | +$49 |
| Surface Protection For Stock Vehicles | +$315 |
| Rain Sensor | +$109 |
| Fog Lamp w/Cornering Light Function | +$199 |
| Sliding Door Right Side Deletion | +$0 |
| Left Rear Door Badging Deletion | +$0 |
| Paint Preservative | +$212 |
| Wheel Chocks | +$38 |
| Electric Closing Assist Left Sliding Door (Soft Close) | +$335 |
| Light Alloy Wheels | +$936 |
| Electric Sliding Step | +$1,106 |
| Sliding Left Door | +$935 |
| Painted Metallic Front and Rear Bumper | +$587 |
| Electrically Folding Exterior Mirrors | +$51 |
| Primed Side Moldings | +$364 |
See Edmunds pricing data
Has Your Car's Value Changed?
Used car values are constantly changing. Edmunds lets you track your vehicle's value over time so you can decide when to sell or trade in.
