2025 Ford F-150 - Specs & Features

More about the 2025 F-150

Select a trim

Starting MSRP

$51,915

Overview

Gas Engine

Drive Type	four wheel drive
Total Seating	6
Bed length	67.1 in.
Payload Capacity	1,650 lbs.
Towing Capacity	13,100 lbs.
Curb Weight	4,941 lbs.
Basic Warranty	3 yr./ 36,000 mi.
Country of final assembly	United States

Fuel & MPG

Fuel type	Regular unleaded
Range in miles (city/hwy)	0/0 mi.
Fuel tank capacity	36.0 gal.

2025 Ford F-150 for sale near you

3 of 132 listings

XLT SuperCrew
MSRP: $60,415
16 mi away
STX SuperCrew
MSRP: $46,245
16 mi away
STX SuperCrew
MSRP: $53,815
16 mi away

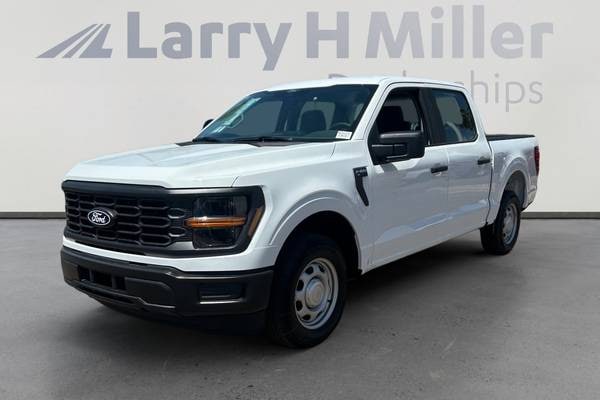

XL SuperCrew
MSRP: $46,090
16 mi away
Lariat SuperCrew
MSRP: $69,805
16 mi away

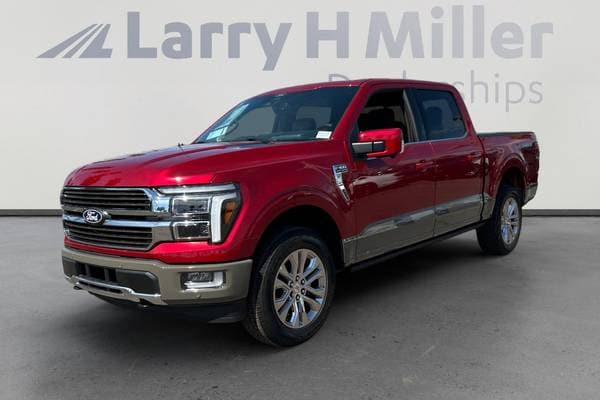

King Ranch SuperCrew
MSRP: $78,490
16 mi away
XLT SuperCrew
MSRP: $64,415
16 mi away
Lariat SuperCrew
MSRP: $70,355
16 mi away

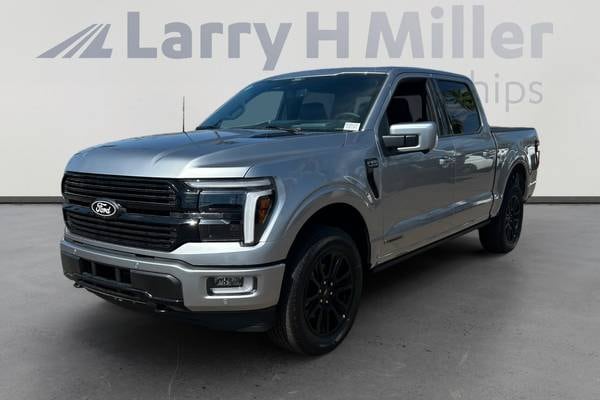

Platinum Hybrid SuperCrew
MSRP: $84,535
16 mi away

See all 132 listings

Engine

Base engine size	2.7 L
Cylinders	V6
Base engine type	Gas

Horsepower	325 hp @ 5,000 rpm
Torque	400 lb-ft @ 3,000 rpm
Valves	24
Cam type	Double overhead cam (DOHC)
Valve timing	Variable
Direct injection	Standard

Towing & Hauling

Max Towing Capacity	13,100 lbs.
Max Payload Capacity	1,650 lbs.

Drivetrain

Transmission	10-speed shiftable automatic
Drive type	Four wheel drive
Part time 4WD	Standard

Electronic hi-lo gear selection	Standard
Automatic locking hubs	Standard

Incentives

See Offers Nearby

Check out current offers on the Ford F-150

View Offers

Ford.com

Suspension

Front independent suspension	Standard
Stabilizer bar stabilizer bar	Standard

Dimensions

Length	232.0 in.
Overall width with mirrors	95.7 in.
Overall width without mirrors	79.9 in.

Height	77.1 in.
Wheelbase	145.4 in.
Bed length	67.1 in.
Turning circle	47.8 ft.
Ground clearance	9.8 in.
Angle of approach	25.9 degrees
Angle of departure	24.9 degrees
Curb weight	4,941 lbs.
Maximum towing capacity	13,100 lbs.
Maximum payload	1,650 lbs.
Gross weight	6,650 lbs.
Country of final assembly	United States

Colors

Exterior Colors	Agate Black Metallic Carbonized Gray Metallic Atlas Blue Metallic Oxford White Green (Fleet) Antimatter Blue Metallic School Bus Yellow (Fleet) Rapid Red Metallic Tinted Clearcoat Iconic Silver Metallic Vermillion Red (Fleet) Marsh Gray Space White Metallic
Interior Colors	Black/Smoked Truffle, cloth Black/Medium Dark Slate, cloth Black, premium cloth Black, leatherette

Front Seat Dimensions

Front head room	40.8 in.
Front leg room	43.9 in.
Front shoulder room	66.7 in.

Front hip room	62.5 in.
Cloth	Standard
40-20-40 split bench front seats	Standard
4-way manual driver seat adjustments	Standard
Driver seat with manual adjustable lumbar support	Standard
4-way manual passenger seat adjustment	Standard

Rear Seat Dimensions

Rear head room	40.4 in.
Rear leg room	43.6 in.
Rear shoulder room	66.0 in.

Rear hip room	62.6 in.
Split-folding rear seatback	Standard

Safety

Blind spot and lane departure warnings accident avoidance system	Standard
Lane keep assist	Standard
Rear cross traffic alert	Standard

Driver attention alert	Standard
Pre-collision safety system	Standard
Post-collision safety system	Standard
Dual front side-mounted airbags	Standard
Front and rear head airbags	Standard
Passenger airbag occupant sensing deactivation	Standard
Stability control	Standard
Traction control	Standard
Child seat anchors	Standard
Rear door child safety locks	Standard
4-wheel ABS	Standard
Front and rear ventilated disc brakes	Standard
Emergency braking preparation	Standard
Emergency braking assist	Standard
Tire pressure monitoring	Standard
Dusk sensing headlamps	Standard
Auto delay off headlamps	Standard
LED headlamp	Standard
Daytime running lights	Standard
Cornering lights	Standard
Front fog/driving lights	Standard
3 front headrests	Standard
Front height adjustable headrests	Standard
3 rear headrests	Standard
Rear height adjustable headrests	Standard
Front center 3-point belt	Standard
Rear center 3-point belt	Standard
Remote anti-theft alarm system	Standard
Engine immobilizer	Standard

Build Your 2025 F-150

At a Glance:

7 Colors
1 Trim
3 Packages
$38,810starting MSRP

Build & Price Ford.com

In-Car Entertainment

12.0" infotainment display size	Standard
AM/FM stereo	Standard
6 total speakers	Standard

Wireless Android Auto/Apple CarPlay	Standard
USB connection	Standard
USB with external media control	Standard
Satellite radio satellite radio	Standard

Power Feature

2 one-touch power windows	Standard
Remote keyless power door locks	Standard
Heated mirrors	Standard

Comfort & Convenience

Tilt and telescopic steering wheel	Standard
Audio and cruise controls on steering wheel	Standard
Electric power steering	Standard

Rear view camera	Standard
Rear parking sensors	Standard
Cruise control	Standard
Front and rear door pockets	Standard
Front seatback storage	Standard
Single zone front air conditioning	Standard
Dual vanity mirrors	Standard

Instrumentation

Trip computer	Standard
Compass	Standard
External temperature display	Standard

Tachometer	Standard
Clock	Standard

Tires & Wheels

Chrome alloy wheels	Standard
18 in. wheels	Standard
All terrain tires	Standard

275/65R18 tires	Standard
Fullsize non-matching spare tire	Standard
Underbody mounted spare tire	Standard

Telematics

Airbag Deployment Notification	Standard
Destination guidance (also Turn-by-Turn Navigation)	Standard
Destination Download	Standard

Warranty

Basic	3 yr./ 36,000 mi.
Drivetrain	5 yr./ 60,000 mi.
Rust	5 yr./ unlimited mi.

Roadside assistance	5 yr./ 60,000 mi.

Mechanical Options

E-Locking 3.55 Axle	+$395
3.5L EcoBoost V6	+$2,220
5.0L V8 w/Flex-Fuel Capability	+$2,340

3.5L PowerBoost Full Hybrid V6	+$3,560
E-Locking 3.73 Axle	+$395
E-Locking 3.73 Axle	+$570
Engine Block Heater	+$190
E-Locking 3.31 Axle	+$420
E-Locking 3.55 Axle	+$470
Trailer Brake Controller	+$275

Packages

XLT Black Appearance Package	+$820
HEV Discount	-$1,900
Equipment Group 302A Discount	-$2,000

Tow/Haul Package	+$500
FX4 Off-Road Package	+$1,320
XLT Black Appearance Package Plus	+$1,820
Tow/Haul Package	+$500
FX4 Off-Road Package	+$1,320
Mobile Office Package w/Wireless Charging	+$780
Mobile Office Package	+$1,270
XLT Black Appearance Package Plus	+$2,425
Equipment Group 303A Discount	-$2,000
Equipment Group 300A	+$0
Equipment Group 303A	+$11,915
Equipment Group 302A	+$7,440
Bed Utility Package	+$860
Equipment Group 301A	+$1,585

Safety & Security Options

Individual Trailer TPMS/Customer-Placed Trailer Camera	+$1,220
Backup Alarm System (Fleet)	+$230
BlueCruise	+$495

Daytime Running Lamps (Fleet)	+$45

Interior Options

Driver's Side SecuriCode Keyless-Entry Wired Keypad	+$225
Tray Style Rubber Floor Liners w/Carpet Floor Mats	+$200
Ash Cup w/Coin Holder	+$55

40/20/40 Removable Cup Tray	+$75
First Aid Kit w/Ford Logo	+$60
Black Vinyl Flooring (Fleet)	+$0
Ash Cup w/Lighter	+$130
Roadside Assistance Kit w/Ford Logo	+$80
Commercial Roadside Assistance Kit	+$240
In-Vehicle Safe by Console Vault	+$430

Exterior Options

Black Tailgate Decals	+$100
Tailgate Viscous Dampening	+$190
Bed Tailgate Lock by McGard	+$50

Spare Tire Lock	+$80
Pro Power Onboard - 7.2kW	+$850
LED Sideview Mirror Spotlights	+$175
Twin Panel Moonroof	+$1,495
Skid Plates (Fleet)	+$160
Amber LED Warning Strobes by Sound Off Signal (Fleet)	+$665
Amber/White LED Warning Strobes by Sound Off Signal (Fleet)	+$665
Illuminated Ford Logo Badge	+$530
Removable Bed Mat	+$200
Hard Folding Tonneau Pickup Box Cover	+$1,280
Retractable Bed Hooks	+$70
Retractable Tonneau Pickup Box Cover	+$2,250
Foldable Pickup Box Bed Extender	+$990
Soft Folding Tonneau Pickup Box Cover	+$600
Front License Plate Bracket	+$0
Retractable Rear Center Step	+$430
LT265/70R18C Black Side Wall All-Terrain Tires (Fleet)	+$295
Tough Bed Spray-In Bedliner	+$625
Paint Protection Film	+$400
Plastic Drop-In Bedliner	+$380
Wheel Well Liner	+$180
Side Window Air Deflectors	+$160
LT265/70R18C Black Side Wall All-Terrain Tires	+$295
Exposed Lug Wheel Lock Kit	+$90
Horizontal Bed Cargo Net	+$85
Bed Divider	+$520
Pivot Storage Box	+$330
20" Chrome-Like PVD Wheels	+$1,505
Manual-Folding, Dual Manual Glass Mirrors	+$395
Front & Rear Molded Splash Guards	+$300
Black Platform Running Boards	+$250

Pricing

Edmunds suggests you pay

$47,458

The Edmunds Suggested Price is what we recommend you pay, including destination fee but excluding options, taxes, and other fees. It's based on our analysis of millions of data points, including supply, demand, incentives, and recent nearby transactions.
