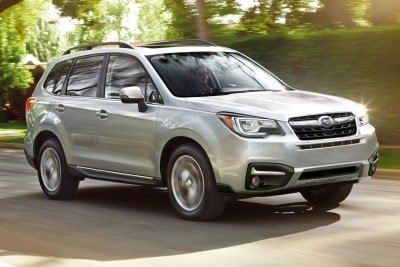

Used 2017 Subaru Forester Specs & Features

Starting MSRP

Engine TypeGas
TransmissionContinuously variable-speed automatic
Drive TypeAll wheel drive
CylindersFlat 4
Total Seating5
Basic Warranty3 yr./ 36,000 mi.
Fuel & MPG
Fuel & MPG
Fuel typeRegular unleaded
EPA city/highway MPG26/32 MPG
EPA combined MPG28 MPG
Range in miles (city/hwy)413.4/508.8 mi.
Fuel tank capacity15.9 gal.
Base engine size2.5 L
CylindersFlat 4
Base engine typeGas
Horsepower170 hp @ 5,800 rpm
Torque174 lb-ft @ 4,100 rpm
Cam typeDouble overhead cam (DOHC)
Valve timingVariable
Towing & Hauling
Towing & Hauling
Max Towing Capacity1,500 lbs.
TransmissionContinuously variable-speed automatic
Drive typeAll wheel drive
Center limited slip differentialyes
Four-wheel independent suspensionyes
Front and rear stabilizer baryes
Length180.9 in.
Overall width without mirrors70.7 in.
Height68.2 in.
Wheelbase103.9 in.
EPA interior volume134.8 cu.ft.
Cargo capacity, all seats in place31.5 cu.ft.
Maximum cargo capacity68.5 cu.ft.
Turning circle34.8 ft.
Ground clearance8.7 in.
Angle of approach23.0 degrees
Angle of departure25.0 degrees
Curb weight3,422 lbs.
Maximum towing capacity1,500 lbs.
Exterior Colors
  • Ice Silver Metallic
  • Ice Silver Metallic
  • Crystal White Pearl
  • Crystal Black Silica
  • Quartz Blue Pearl
  • Dark Gray Metallic
  • Jasmine Green Metallic
  • Venetian Red Pearl
Interior Colors
  • Black, cloth
  • Gray, cloth
Front Seat Dimensions
Front Seat Dimensions
Front head room40.0 in.
Front leg room43.0 in.
Front shoulder room57.0 in.
Front hip room53.9 in.
Bucket front seatsyes
8-way power driver seatyes
Height adjustable driver seatyes
Driver seat with power adjustable lumbar supportyes
4-way manual passenger seat adjustmentyes
Height adjustable passenger seatyes
Rear Seat Dimensions
Rear Seat Dimensions
Rear head room37.5 in.
Rear leg room38.0 in.
Rear shoulder room56.5 in.
Rear hip room53.0 in.
Split-folding rear seatbackyes
Reclining rear seatsyes
Folding center armrestyes
Post-collision safety systemyes
Dual front side-mounted airbagsyes
Front and rear head airbagsyes
Passenger airbag occupant sensing deactivationyes
Stability controlyes
Traction controlyes
Child seat anchorsyes
Rear door child safety locksyes
4-wheel ABSyes
Ventilated front disc / solid rear disc brakesyes
Emergency braking assistyes
Tire pressure monitoringyes
Daytime running lightsyes
2 front headrestsyes
3 rear headrestsyes
Rear height adjustable headrestsyes
Rear center 3-point beltyes
Remote anti-theft alarm systemyes
Engine immobilizeryes
In-Car Entertainment
In-Car Entertainment
AM/FM stereoyes
6 total speakersyes
USB connectionyes
Auxiliary audio input and USB with external media controlyes
Power Feature
Power Feature
2 one-touch power windowsyes
Remote keyless power door locksyes
Heated mirrorsyes
Comfort & Convenience
Comfort & Convenience
Tilt and telescopic steering wheelyes
Audio and cruise controls on steering wheelyes
Electric power steeringyes
Rear view camerayes
Cruise controlyes
Front and rear cupholdersyes
Front and rear door pocketsyes
Overhead console with storageyes
Front seatback storageyes
Single zone front climate controlyes
Interior air filtrationyes
Dual illuminating vanity mirrorsyes
Trip computeryes
External temperature displayyes
Tires & Wheels
Tires & Wheels
Alloy wheelsyes
17 x 7.0 in. wheelsyes
All season tiresyes
225/60R H tiresyes
Temporary spare tireyes
Inside mounted spare tireyes
Basic3 yr./ 36,000 mi.
Drivetrain5 yr./ 60,000 mi.
Rust5 yr./ unlimited mi.
Roadside3 yr./ 36,000 mi.
Mechanical Options
Mechanical Options
Remote Engine Starter Kit +$451
STI Pedal Pad Kit - AT +$172
All-Weather Package + EyeSight + Blind Spot Detection/Rear Cross Traffic Alert + Power Rear Gate +$2,145
Rugged Package #1 +$618
Popular Package #1A +$626
Popular Package #2A +$736
Protection Package #1 +$610
All-Weather Package + EyeSight + Blind Spot Detection/Rear Cross Traffic Alert +$1,695
Standard Model - 2.5i Premium CVT +$0
All-Weather Package +$500
Safety & Security Options
Safety & Security Options
Security System Shock Sensor +$198
Interior Options
Interior Options
Cargo Tray +$81
Interior & Exterior Auto Dimming Mirror w/Approach Lighting +$464
Compartment Separator +$369
Auto-Dimming Mirror w/Compass for Eyesight Models +$232
Cargo Net Rear Seat Back +$64
Auto-Dimming Mirror w/Compass and Homelink for Eyesight Models +$342
Sunshade +$76
Speaker Kit +$302
Cargo Cover (Power Rear Gate) +$172
Exterior Auto-Dimming Mirror w/Approach Lighting & Blind Spot Detection +$272
Cargo Net Side +$73
Auto-Dimming Mirror w/Compass and Homelink +$342
Interior & Exterior Auto Dimming Mirror w/ Homelink & Approach Lighting +$574
Footwell Illumination Kit - Red +$202
Auto-Dimming Mirror w/Compass +$232
Kicker Audio Upgrade Package +$350
Exterior Auto-Dimming Mirror w/Approach Lighting +$232
Footwell Illumination Kit - Blue +$202
Cargo Net Rear +$67
Cargo Cover (Manual Rear Gate) +$172
Tweeter Kit +$148
STI Leather Shift Knob CVT +$193
Rear Seat Back Protector +$92
All-Weather Floor Mats +$81
110 Power Outlet Kit +$410
Exterior Options
Exterior Options
Wheel Lock Kit (Alloy Wheels) +$78
Body Side Molding Kit Crystal White Pearl +$265
Body Side Molding Kit Ice Silver Metallic +$265
Fog Lamp Kit - Black Interior +$379
Wheel Arch Moldings +$486
Body Side Molding Kit Quartz Blue Pearl +$265
Exhaust Tip +$53
Body Side Molding Kit Crystal Black Silica +$265
Body Side Molding Kit Dark Gray Metallic +$265
Body Side Molding Kit Venetian Red +$265
Fog Lamp Kit - Gray Interior +$379
Rear Bumper Underguard +$278
Door Edge Guard Crystal Black Silica +$147
Door Edge Guard Dark Gray Metallic +$147
Door Edge Guard Ice Silver Metallic +$147
Body Side Molding Kit Jasmine Green +$265
Door Edge Guard Crystal White Pearl +$147
Trailer Hitch +$613
Door Edge Guard Jasmine Green +$147
Sport Grille +$495
Splash Guards +$167
Cross Bar Set - Aero +$181
Rear Bumper Cover +$98
Front Bumper Underguard +$179
Door Edge Guard Quartz Blue Pearl +$147
Door Edge Guard Venetian Red Pearl +$147
