Used 2017 Mercedes-Benz Sprinter 2500 170" WB Cargo Specs & Features

Starting MSRP

$41,295

Overview

Diesel

Drive Type	rear wheel drive
Total Seating	2
Cargo Capacity	486.5 cu.ft.
Curb Weight	5,434 lbs.
Basic Warranty	3 yr./ 36,000 mi.
Country of final assembly	Germany/United States

Fuel & MPG

Fuel type	Diesel fuel
Range in miles (city/hwy)	0/0 mi.
Fuel tank capacity	24.5 gal.

2017 Mercedes-Benz Sprinter for sale near you

3 of 36 listings

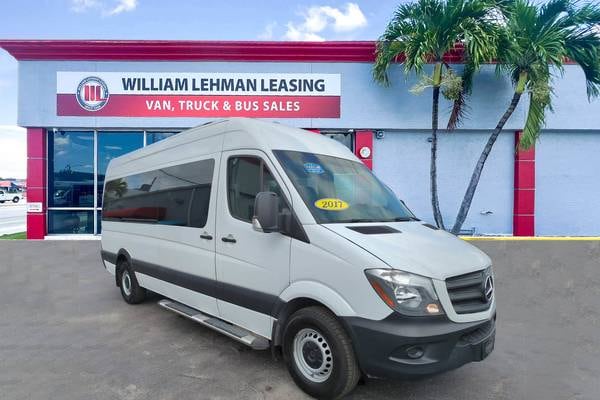

2500 170" WB Passenger Diesel Passenger Van w/High Roof
MSRP: $44,999
54 mi away

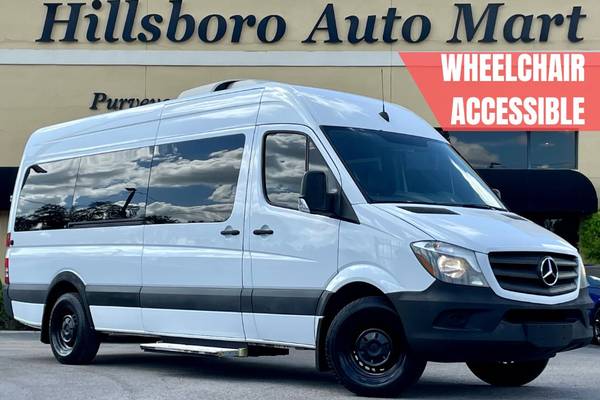

2500 144" WB Crew Diesel Passenger Van
MSRP: $69,999
181 mi away
2500 170" WB Passenger Diesel Passenger Van w/High Roof
MSRP: $34,900
200 mi away

2500 170" WB Passenger Diesel Passenger Van w/High Roof
MSRP: $23,995
208 mi away
3500 144" WB Cargo Diesel Cargo Van
MSRP: $34,950
599 mi away
2500 144" WB Passenger Diesel Passenger Van
MSRP: $27,800
717 mi away
2500 144" WB Passenger Diesel Passenger Van
MSRP: $35,877
729 mi away
Cargo 170.3 in WB Diesel
MSRP: $32,395
810 mi away
3500 High Roof 170-in. WB EXT Diesel
MSRP: $29,997
829 mi away

See all 36 listings

Engine

Base engine size	2.1 L
Cylinders	Inline 4
Base engine type	Diesel

Horsepower	161 hp @ 3,800 rpm
Torque	265 lb-ft @ 1,400 rpm
Valves	16
Cam type	Double overhead cam (DOHC)
Direct injection (diesel)	Standard

Towing & Hauling

Max Towing Capacity	5,000 lbs.
Max Payload Capacity	3,116 lbs.

Drivetrain

Transmission	7-speed shiftable automatic
Drive type	Rear wheel drive

Suspension

Front independent suspension	Standard
Stabilizer bar stabilizer bar	Standard

Dimensions

Length	274.1 in.
Overall width with mirrors	95.5 in.
Overall width without mirrors	79.7 in.

Height	105.9 in.
Wheelbase	170.3 in.
Cargo capacity, all seats in place	486.5 cu.ft.
Maximum cargo capacity	486.5 cu.ft.
Turning circle	51.5 ft.
Ground clearance	7.9 in.
Curb weight	5,434 lbs.
Maximum towing capacity	5,000 lbs.
Maximum payload	3,116 lbs.
Gross weight	8,550 lbs.
Country of final assembly	Germany/United States

Colors

Exterior Colors	Vanda Blue Aqua Green Blue Gray Jet Black Tenorite Gray Metallic Broom Yellow (Fleet) Gray White Coca Cola Red (Fleet) Graphite Gray Metallic Brilliant Silver Metallic Cavansite Blue Metallic Steel Blue Pearl Silver Metallic Pebble Gray Solar Green (Fleet) Arctic White Jupiter Red Earth Brown (Fleet) Velvet Red Dolomite Brown Metallic Obsidian Black Metallic Stone Gray Calcite Yellow Flame Red Graphite Gray Black Blue Silver Gray Brilliant Blue
Interior Colors	Tunja Black Upholstery, cloth Black, leatherette

Exterior Colors

Vanda Blue
Aqua Green
Blue Gray
Jet Black
Tenorite Gray Metallic
Broom Yellow (Fleet)
Gray White
Coca Cola Red (Fleet)
Graphite Gray Metallic
Brilliant Silver Metallic
Cavansite Blue Metallic
Steel Blue
Pearl Silver Metallic
Pebble Gray
Solar Green (Fleet)
Arctic White
Jupiter Red
Earth Brown (Fleet)
Velvet Red
Dolomite Brown Metallic
Obsidian Black Metallic
Stone Gray
Calcite Yellow
Flame Red
Graphite Gray
Black Blue
Silver Gray
Brilliant Blue

Interior Colors

Tunja Black Upholstery, cloth
Black, leatherette

Front Seat Dimensions

Front head room	56.7 in.
Front leg room	38.9 in.
Front shoulder room	67.7 in.

Front hip room	63.5 in.
Cloth	Standard
Bucket front seats	Standard
4-way manual driver seat adjustments	Standard
4-way manual passenger seat adjustment	Standard

Safety

Post-collision safety system	Standard
Dual front side-mounted airbags	Standard
Front head airbags	Standard

Passenger airbag occupant sensing deactivation	Standard
Stability control	Standard
Traction control	Standard
4-wheel ABS	Standard
Brake drying	Standard
Ventilated front disc / solid rear disc brakes	Standard
Emergency braking assist	Standard
Tire pressure monitoring	Standard
Daytime running lights	Standard
Turn signal mirrors	Standard
2 front headrests	Standard
Front height adjustable headrests	Standard
Engine immobilizer	Standard

In-Car Entertainment

AM/FM stereo	Standard
80 watts stereo output	Standard
5 total speakers	Standard

USB connection	Standard
Auxiliary audio input	Standard
Memory card slot	Standard
Speed sensitive volume control	Standard

Power Feature

Remote keyless power door locks	Standard
Heated mirrors	Standard

Comfort & Convenience

Tilt-adjustable steering wheel	Standard
Transmission controls on steering wheel	Standard
Power steering	Standard

Front cupholders	Standard
Front door pockets	Standard
Overhead console with storage	Standard
Single zone front air conditioning	Standard
Turn signal in mirrors	Standard

Instrumentation

External temperature display	Standard
Tachometer	Standard
Clock	Standard

Tires & Wheels

Steel wheels	Standard
16 x 6.5 in. wheels	Standard
All season tires	Standard

LT245/75R16 tires	Standard
Fullsize matching spare tire	Standard
Underbody mounted spare tire	Standard

Warranty

Basic	3 yr./ 36,000 mi.
Drivetrain	5 yr./ 100,000 mi.
Rust	5 yr./ 100,000 mi.

Mechanical Options

Top Speed Limitation At 74 MPH	+$55
Additional Bar for Driveshaft and Exhaust Extension	+$62
Generator 14V/250A	+$0

Sealing Of Speedometer Drive	+$66
High Idle - Driver Adjustable	+$414
Comfort Rear Springs	+$142
Spare Wheel Deletion	-$105
Spare Tire Carrier Deletion	+$0
Rear Spring Vibration Absorbers	+$127
Fuel-Fired Pre-Heater/Booster	+$1,021
Bracket For Auxiliary AC Compressor	+$427
Axle Ratio 4.18	+$0
PTO at Front w/Bracket for Additional Alternator	+$427
Speed Limitation 65mph	+$55
High Idle Preset	+$381
5kW Heater Booster	+$618
Auxiliary Water Heater with Timer	+$1,028

Packages

Floor Package	+$330
Front Bench Seat Package	+$645
Cargo Protection Package	+$1,215

Multi-function Wheel/Display Package	+$345
Driver Comfort Package	+$570
Active Safety Plus Package	+$1,885
Driver Efficiency Package	+$1,520
Lighting Package	+$950
Trailer Hitch Package	+$370
Additional Battery Package	+$380
Suspension Package I	+$335
Suspension Package III	+$335
High Idle Fixed Package	+$635
Workspace Access Package	+$820
Active Safety Plus Package w/Parktronic	+$2,680
Premium Appearance Package	+$1,430

Safety & Security Options

Deactivation Lamp Monitoring Failure	+$24
First Aid Kit	+$24
Emergency Flashlight	+$24

Rear Backup Alarm	+$91
Optional Three-Button Keys	+$33
Fog Lamps	+$222
Light And Rain Sensor	+$265
Rear View Camera	+$677
Parktronic System (PTS)	+$980
Security Alarm w/Interior Motion Sensor	+$619
Driver And Front Passenger Orange Seat Belts	+$29

Interior Options

Storage Net On Driver Seat Backrest	+$59
Storage Net On Passenger Seat Backrest	+$59
Heat Insulation Front Compartment	+$170

Half Height Load Compartment Trim	+$184
Heated Driver's Seat	+$260
Cab Rear Wall Liner	+$328
Pre-Fitting For Shelving Unit	+$586
Rear Window Defroster	+$232
Fan - Electric Roof	+$365
Ceiling Lamp In Load Compartment	+$275
Light Motion Sensor For Load Compartment	+$49
Electrically Heated Windshield	+$440
Pre-Installation For Radio	-$369
Cruise Control	+$374
Wooden Floor Deletion	-$306
Passenger Comfort Seat	+$217
Cargo Straps/Lashing Rails	+$95
D-Ring Cargo Straps	+$74
Convenience Lighting In Load/Passenger Compartment	+$191
Leather Steering Wheel (MB ONLY)	+$170
Cable Duct - Sidewall	+$21
12V Power Outlet In Rear Compartment	+$84
Cable Duct - Rear Portal	+$21
Heat Insulation Rear Compartment	+$143
Cargo Partition	+$264
Cargo Partition w/1 Window	+$306
Pre-Installation For Bulkhead	+$127
Cargo Partition w/1 Sliding Window	+$470
Parametric Special Module (PSM)	+$290
Rear Cabin Heater and Vents	+$719
Hinged Lid For Storage Compartment	+$85
Overhead Control Panel w/2 Reading Lights	+$127
Becker Map Pilot	+$624
Remote Control for Auxiliary Heater	+$348
Driver Comfort Seat	+$217
Front Center Overhead Storage Slot	+$96
12V Power Outlet At Driver Seat Base	+$84
Driver and Passenger Door Mounted Assist Handles	+$54
Storage Compartment w/Net In Rear Doors	+$116
Side Wall Paneling Full Hardboard	+$406
Cargo Lashing Rails On Waistline	+$253
Rear Roof Trim	+$802
Upper Cargo Lashing Rails	+$380
Heated Front Passenger Seat	+$260
Pre-Installation Becker Map Pilot Navigation System	+$307
Two Additional Masters Keys	+$111

Exterior Options

Side Door Badging Deletion	+$0
Assist Handle For Sliding Door	+$29
Wheel House Covering	+$96

Light Alloy Wheels	+$829
Fixed Window In Right Sliding Door	+$132
Wheel Chocks	+$35
Rear Door Badging Deletion	+$0
Assist Handle w/Partition	+$29
Headlamp Washing System	+$265
Grey Rear Door Step	+$170
Two Stage Opening Sliding Door	+$75
Front License Plate Deletion	+$0
Assist Handle For Right Rear Door	+$29
Assist Handle For Left Rear Door	+$29
Electric Sliding Step	+$979
M+S Tires	+$127
Arctic White Painted Wheels	+$74
Painted Metallic Front & Rear Bumper	+$625
Illuminated Exits	+$138
Def Fluid Filler Cap - Lockable	+$24
Fixed Sunroof For Rear Roof Section	+$307
Mounting Rails For Roof Rack	+$274
Continental Tires	+$127
Jet Black Painted Wheels	+$74
Primed Front & Rear Bumpers	+$333
Chrome Trimmed Radiator Grille	+$342
Heated And Electrically Adjustable Exterior Mirrors	+$264
Primed Side Moldings	+$333
Trailer Hitch Wiring	+$127
Sliding Left Door	+$855
Sliding Door Right Side Deletion	+$0
Windows in Rear Doors	+$85
Rear Door Window w/Wash Wipers	+$391
Protective Edge On Door Sill	+$65
Black Tinted Windows in Rear	+$127
Spring Loaded Rear Bumper Step	+$550
Fixed Window In Left Sliding Door	+$132
Windshield w/Filter Band	+$54
