Used 2020 Mercedes-Benz Sprinter 3500XD 170" WB Cargo Specs & Features

Starting MSRP

$60,475

Overview

Diesel

Drive Type	four wheel drive
Total Seating	2
Cargo Capacity	469.4 cu.ft.
Curb Weight	6,151 lbs.
Basic Warranty	3 yr./ 36,000 mi.
Country of final assembly	Germany/United States

Fuel & MPG

Fuel type	Diesel fuel
Range in miles (city/hwy)	0/0 mi.
Fuel tank capacity	24.5 gal.

2020 Mercedes-Benz Sprinter for sale near you

3 of 141 listings

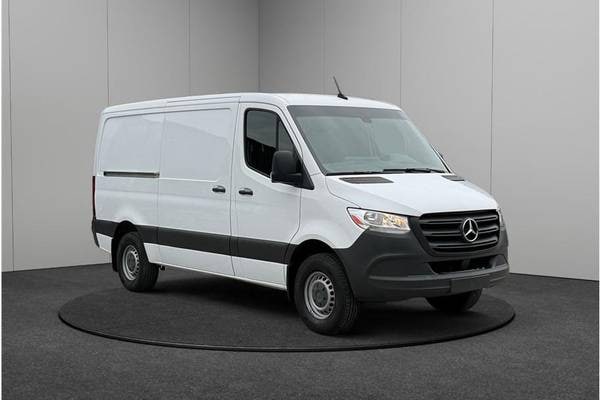

2500 144" WB Passenger Diesel Passenger Van w/High Roof
MSRP: $55,500
98 mi away

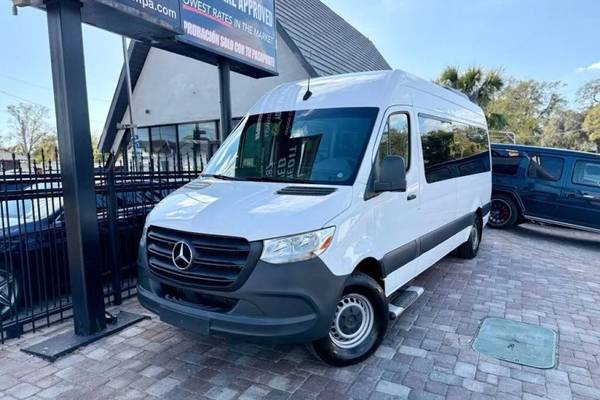

2500 170" WB Passenger Diesel Passenger Van w/High Roof
MSRP: $59,999
106 mi away
2500 170" WB Passenger Diesel Passenger Van w/High Roof
MSRP: $43,990
107 mi away

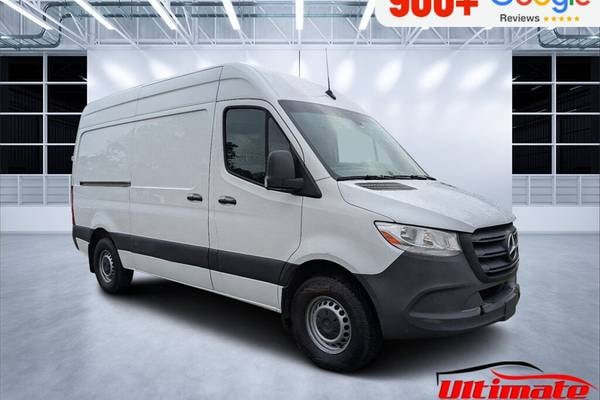

2500 144" WB Cargo Diesel Cargo Van
MSRP: $32,000
115 mi away
2500 144" WB Crew Diesel Passenger Van w/High Roof
MSRP: $24,432
115 mi away
1500 144" WB Cargo Cargo Van
MSRP: $24,999
122 mi away
2500 170" WB Crew Diesel Passenger Van w/High Roof
MSRP: $29,900
127 mi away
1500 144" WB Cargo Cargo Van
MSRP: $26,500
143 mi away
2500 170" WB Crew Diesel Passenger Van w/High Roof
MSRP: $34,995
152 mi away

See all 141 listings

Engine

Base engine size	3.0 L
Cylinders	V6
Base engine type	Diesel

Horsepower	188 hp @ 3,800 rpm
Torque	325 lb-ft @ 1,400 rpm
Valves	24
Cam type	Double overhead cam (DOHC)
Direct injection (diesel)	Standard

Towing & Hauling

Max Towing Capacity	5,000 lbs.
Max Payload Capacity	4,879 lbs.

Drivetrain

Transmission	7-speed shiftable automatic
Drive type	Four wheel drive
On demand 4WD	Standard

Electronic hi-lo gear selection	Standard
Automatic locking hubs	Standard

Suspension

Front independent suspension	Standard
Front and rear stabilizer bar	Standard

Dimensions

Length	290.0 in.
Overall width with mirrors	95.5 in.
Overall width without mirrors	79.5 in.

Height	110.6 in.
Wheelbase	170.0 in.
Cargo capacity, all seats in place	469.4 cu.ft.
Maximum cargo capacity	469.4 cu.ft.
Turning circle	50.2 ft.
Ground clearance	8.2 in.
Curb weight	6,151 lbs.
Maximum towing capacity	5,000 lbs.
Maximum payload	4,879 lbs.
Gross weight	11,030 lbs.
Country of final assembly	Germany/United States

Colors

Exterior Colors	Selenite Grey Metallic Sunset Red Graphite Grey Obsidian Black Metallic Black Blue Calcite Yellow Velvet Red Steel Blue Stone Grey Jupiter Red Pebble Grey Silver Grey Vanda Blue Cavansite Blue Metallic Tenorite Grey Metallic Arctic White Aqua Green Jet Black Brilliant Blue Iridium Silver Grey White Blue Grey
Interior Colors	Caluma Black, cloth Maturin Black, cloth Black, leatherette

Front Seat Dimensions

Front head room	56.4 in.
Front leg room	38.9 in.
Front shoulder room	67.4 in.

Front hip room	63.7 in.
Cloth	Standard
Bucket front seats	Standard
4-way manual driver seat adjustments	Standard
4-way manual passenger seat adjustment	Standard

Safety

Post-collision safety system	Standard
Dual front side-mounted airbags	Standard
Front head airbags	Standard

Passenger airbag occupant sensing deactivation	Standard
Stability control	Standard
Traction control	Standard
4-wheel ABS	Standard
Brake drying	Standard
Ventilated front disc / solid rear disc brakes	Standard
Emergency braking assist	Standard
Tire pressure monitoring	Standard
Dusk sensing headlamps	Standard
Daytime running lights	Standard
Turn signal mirrors	Standard
2 front headrests	Standard
Front height adjustable headrests	Standard
Engine immobilizer	Standard

In-Car Entertainment

AM/FM stereo	Standard
80 watts stereo output	Standard
5 total speakers	Standard

USB connection	Standard
Auxiliary audio input	Standard
Speed sensitive volume control	Standard

Power Feature

Remote keyless power door locks	Standard
Heated mirrors	Standard

Comfort & Convenience

Keyless ignition	Standard
Tilt-adjustable steering wheel	Standard
Transmission controls on steering wheel	Standard

Power steering	Standard
Rear view camera	Standard
Front cupholders	Standard
Front door pockets	Standard
Overhead console with storage	Standard
Single zone front air conditioning	Standard
Rear heater unit	Standard
Turn signal in mirrors	Standard

Instrumentation

External temperature display	Standard
Tachometer	Standard
Clock	Standard

Tires & Wheels

Steel wheels	Standard
16 x 5.5 in. wheels	Standard
All season tires	Standard

LT215/85R16 tires	Standard
Fullsize matching spare tire	Standard
Underbody mounted spare tire	Standard

Telematics

Emergency Service	Standard
Stolen Vehicle Tracking/Assistance	Standard
Roadside Assistance	Standard

Warranty

Basic	3 yr./ 36,000 mi.
Drivetrain	5 yr./ 100,000 mi.
Rust	3 yr./ unlimited mi.

Mechanical Options

Spare Wheel Deletion	-$110
Bracket For Auxiliary AC Compressor	+$451
Front Engine Bracket For Additional Alternator	+$451

Fuel Gauge	+$69
Engine Oil Level Display at Cold Start	+$0
Spare Tire Carrier Deletion	+$0
Downhill Speed Regulation For 4x4	+$56
Top Speed Limitation at 75 MPH	+$58
Speed Limitation 65 MPH	+$58
Fuel-Fired Pre-Heater/Booster	+$1,078
Fuel-Fired Heater/Booster	+$653

Packages

Coat Hooks In Driver Cabin	+$14
Cargo Convenience Package	+$636
Cargo Protection Package	+$1,079

Driver Convenience Package	+$994
Chrome Grille Package	+$280
Comfort Package (Seat Addition)	+$368
C02 In Combination w/C03	+$656
Distronic Addition Premium Package	+$394
Comfort Package	+$262
Comfort Plus Package	+$1,858
Premium Package	+$1,022
Exterior Lighting Package	+$1,553
Premium Plus Package	+$2,126
Suspension Seating Package	+$908
Bench Seat Package	+$384
Swivel Seat Package	+$514
Heavy-Duty Cargo Protection Package	+$1,973

Safety & Security Options

Parking Package	+$594
Deactivation Lamp Monitoring Failure	+$26
Optional Three-Button Keys	+$35

Folding Handbrake Lever	+$53
FMVSS 217 Emergency Exit	+$366
High Beam Assist	+$264
Blind Spot Assist	+$435
Rear Backup Alarm	+$96
First Aid Kit	+$26
Security Alarm w/Interior Motion Sensor	+$564
Emergency Flashlight	+$26
Rear View Camera (Head Unit Display)	+$325
Active Brake Assist	+$278
Attention Assist	+$47
Extension of PSM Standard Contact	+$56
Active Lane Keeping Assist	+$278

Interior Options

Parametric Special Module (PSM)	+$306
Warm/Cool Air Duct to Rear Compartment	+$57
12V Power Outlet, Drive Seat Base	+$89

Cruise Control	+$255
Front Cigarette Lighter w/Ash Cup	+$38
SiriusXM Satellite Radio	+$247
Active Distance Assist DISTRONIC	+$174
Protective Edge On Door Sill	+$68
Acoustic Package	+$84
Side Wall Paneling Waist Height PVC	+$308
Two Additional Masters Keys	+$117
Additional Battery, Co-Driver Seat Base	+$240
Thermotronic Automatic Climate Control	+$326
Rear Window Defroster	+$245
Heated Driver's Seat	+$274
Light Motion Sensor For Load Compartment	+$52
Heated Front Passenger Seat	+$274
Wheel House Covering	+$101
Tray For Smartphones w/Wireless Charging	+$151
Front Center Overhead Storage Slot	+$101
12V Power Outlet, Rear Compartment	+$89
Access Point For BB Special Signals In Cockpit	+$28
Window Pillar Trim	+$496
Leather Steering Wheel	+$180
Hinged Rear Doors Full Paneling	+$37
Right Sliding Door Full Paneling	+$105
Dashboard Charging Package	+$80
Instrument Cluster w/Color Display	+$139
Additional DIN-Slot	+$79
115V Socket	+$120
Cab Rear Wall Liner	+$347
Pallet Support In Sliding Door Step	+$93
Head Height Cargo Lashing Rails	+$401
Swivel Base For Front Passenger Seat	+$298
Side Wall Paneling Full Hardboard	+$428
Cargo Partition	+$278
Swivel Base For Driver's Seat	+$298
Comfort Overhead Control Panel	+$90
Orange Seat Belts	+$31
LED Light Strip In Load Compartment	+$254
Roof Trim	+$847
Storage Compartment Above Cabin	+$180
Cutoff Relay For Additional Battery	+$106
Driver's Seat Plus	+$230
Basic Electric Fitting For Rear Loadspeakers	+$65
Luxury Interior Trim	+$639
Electrically Heated Windshield	+$210
MBUX Multimedia System w/10.25" Touchscreen	+$1,657
Omission of D-Rings	-$15
Roof-Mounted Rear Air Conditioning	+$2,775
Navigation	+$703
Interior Rear View Mirror	+$35
D-Ring Cargo Straps	+$79
Rear Cabin Heater and Vents	+$759
Driver's and Co-Driver's Door Armrest	+$49
Wood Floor w/6 D-Rings	+$408
Heat Insulation Front Compartment	+$180
Electric Roof Fan	+$386
Front-to-Rear Outlet In Instrument Panel	+$0
Hinged Lid For Storage Compartment	+$90
Plastic Floor Covering	+$357
Rear Heater Preparation	+$391
Heat Insulation Rear Compartment	+$151
Heavy-Duty Rear Air Conditioner	+$3,806
Shelving Prep	+$619
Additional Battery For Retrofit Consumers, Engine Compartment	+$240
Cargo Straps/Lashing Rails	+$100
Lashing Rails, Floor-Level (Plus 4 Anchors)	+$334
Cargo Partition w/One Window	+$323
Storage Compartment w/Net In Rear Doors	+$122
Half Height Load Compartment Trim	+$194
Waist Level Lashing Rails	+$267

Exterior Options

Rain Sensor	+$102
Paint Preservative	+$181
Surface Protection For Stock Vehicles	+$304

Raised Rear Body Mounts	+$244
Fog Lamp w/Cornering Light Function	+$192
Assist Handle, Left Rear Door	+$31
Two Stage Opening Sliding Door	+$80
Assist Handles, Right Rear Door	+$31
Black Tinted Rear Windows	+$134
Electrical Sliding Door Right	+$803
Fixed Window In Right Sliding Door	+$140
Sliding Left Door	+$903
Lockable DEF Fluid Filler Cap	+$26
Fixed Window In Left Sliding Door	+$140
Multifunction Steering Wheel	+$140
Sliding Door Right Side Deletion	+$0
AGM Battery 12V 92Ah 850A	+$98
Right Rear Door Badging Deletion	+$0
Left Rear Door Badging Deletion	+$0
Primed Front and Rear Bumpers	+$259
Electric Sliding Step	+$1,034
Arctic White Painted Wheels	+$79
Michelin Tires	+$0
Continental Tires	+$0
Fixed Sunroof For Rear Roof Section	+$324
Specially Requested Tires	+$98
Electric Closing Assist Right Sliding Door (Soft Close)	+$323
Opening Limiter, Electrically Operated Sliding Door	+$116
Painted Metallic Front and Rear Bumper	+$567
Jet Black Painted Wheels	+$79
Primed Side Moldings	+$352
Mounting Rails For Roof Rack	+$290
Trailer Hitch, 5,000 lbs	+$142
Kumho Tires	+$0
Half-Sided Step Rear (For Trailer Hitch)	+$98
M+S Tires	+$163
Grey Rear Door Step	+$180
Rear Door Window w/Wash Wipers	+$323
Windows In Rear Doors	+$90
Electric Closing Assist Left Sliding Door (Soft Close)	+$323
Heated and Electrically Adjustable Exterior Mirrors	+$278
Misfueling Prevention for Diesel	+$47
B-Pillar Assist Handle	+$31
Assist Handle w/Partition	+$31
Illuminated Front Exits	+$146
Wheel Chocks	+$37
