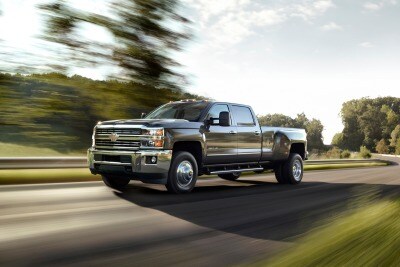

Used 2018 Chevrolet Silverado 3500HD Work Truck Specs & Features

Overview
Overview
Starting MSRP
$40,545

Engine TypeFlex-fuel (FFV)
Transmission6-speed shiftable automatic
Drive TypeRear wheel drive
CylindersV8
Total Seating6
Basic Warranty3 yr./ 36,000 mi.
Fuel & MPG
Fuel & MPG
Fuel typeFlex-fuel (unleaded/E85)
Range in miles (cty/hwy)0/0 mi.
Fuel tank capacity36.0 gal.
Engine
Engine
Base engine size6.0 L
CylindersV8
Base engine typeFlex-fuel (FFV)
Horsepower360 hp @ 5,400 rpm
Torque380 lb-ft @ 4,200 rpm
Valves16
Cam typeOverhead valves (OHV)
Valve timingVariable
Towing & Hauling
Towing & Hauling
Max Towing Capacity20,000 lbs.
Max Payload Capacity6,112 lbs.
Drivetrain
Drivetrain
Transmission6-speed shiftable automatic
Drive typeRear wheel drive
Rear locking differentialyes
Suspension
Suspension
Front independent suspensionyes
Stabilizer bar stabilizer baryes
Dimensions
Dimensions
Length258.4 in.
Overall Width without Mirrors96.0 in.
Height77.8 in.
Wheel base167.7 in.
Bed Length8'2”
Turning circle55.7 ft.
Ground clearance8.3 in.
Curb weight6,888 lbs.
Maximum towing capacity20,000 lbs.
Maximum payload6,112 lbs.
Gross weight13,025 lbs.
Colors
Colors
Exterior Colors
  • Deep Ocean Blue Metallic
  • Black
  • Silver Ice Metallic
  • Graphite Metallic
  • Summit White
  • Havana Metallic
  • Red Hot
Interior Colors
  • Dark Ash Seats w/Jet Black Interior Accents, cloth
  • Dark Ash Seats w/Jet Black Interior Accents, vinyl
Front Seat Dimensions
Front Seat Dimensions
Front head room42.8 in.
Front leg room45.3 in.
Front shoulder room64.8 in.
Front hip room60.7 in.
Vinylyes
40-20-40 split bench front seatsyes
4 -way manual driver seat adjustmentsyes
4 -way manual passenger seat adjustmentyes
Rear Seat Dimensions
Rear Seat Dimensions
Rear head room40.5 in.
Rear leg room40.9 in.
Rear shoulder room64.3 in.
Rear hip Room60.2 in.
Split-folding rear seatbackyes
Folding with storage center armrestyes
Rear ventilation ductsyes
Safety
Safety
Dual front side-mounted airbagsyes
Passenger airbag occupant sensing deactivationyes
Stability controlyes
Traction controlyes
Child seat anchorsyes
Rear door child safety locksyes
4-wheel ABSyes
Front and rear ventilated disc brakesyes
Emergency braking assistyes
Tire pressure monitoringyes
Dusk sensing headlampsyes
Auto delay off headlampsyes
Daytime running lightsyes
2 front headrestsyes
2 rear headrestsyes
Rear height adjustable headrestsyes
Front center lap beltyes
Rear center 3-point beltyes
Engine immobilizeryes
In-Car Entertainment
In-Car Entertainment
AM/FM stereoyes
6 total speakersyes
Speed sensitive volume controlyes
Power Feature
Power Feature
4 one-touch power windowsyes
Power door locksyes
Heated mirrorsyes
Comfort & Convenience
Comfort & Convenience
Tilt-adjustable steering wheelyes
Cruise controls on steering wheelyes
Power steeringyes
Rear view camerayes
Cruise controlyes
Front and rear cupholdersyes
Front and rear door pocketsyes
Single zone front air conditioningyes
Instrumentation
Instrumentation
Trip computeryes
Compassyes
Tachometeryes
Clockyes
Tires & Wheels
Tires & Wheels
Painted steel wheelsyes
Partial wheel coversyes
17 in. wheelsyes
All season tiresyes
LT235/80R17 tiresyes
Fullsize non-matching spare tireyes
Underbody mounted spare tireyes
Warranty
Warranty
Basic3 yr./ 36,000 mi.
Drivetrain5 yr./ 60,000 mi.
Rust6 yr./ 100,000 mi.
Roadside5 yr./ 60,000 mi.
Mechanical Options
Mechanical Options
High Idle Switch +$200
Duramax 6.6L Turbo-Diesel V8 Engine +$9,395
Allison 6-Speed Automatic Transmission +$0
Engine Block Heater +$100
Dual Alternators +$380
Trailer Wiring Provisions for 5th-Wheel/Gooseneck Trailer +$35
220-Amp Alternator +$150
Cold Weather Cover for Diesel Engine +$55
Integrated Trailer Brake Controller +$0
Auxiliary Battery w/730 Cold-Cranking Amps +$135
Packages
Packages
WT Convenience Package +$950
Protection Package +$385
Hitch Package +$295
WT Convenience Package +$990
Gooseneck/5th Wheel Prep Package +$370
Essentials Package +$1,295
Underbody Shields +$150
Safety & Security Options
Safety & Security Options
Side Curtain and Seat Mounted Side Impact Air Bags +$395
Interior Options
Interior Options
Upfitter Switches +$125
All Weather Floor Mats +$165
Color Keyed Carpeting and Vinyl Front Floormats +$100
OnStar +$175
Electric Rear-Window Defogger +$225
SiriusXM Satellite Radio +$195
Rear Under Seat Storage +$255
All Weather Floor Liner +$200
Exterior Options
Exterior Options
6" Chromed Rectangular Assist Steps +$775
Front License Plate Kit +$0
Rocker Guard +$545
Illuminated Black Bowtie Emblem +$425
Gold Illuminated Front Bowtie Emblem +$375
Chrome Recovery Hooks +$250
Front and Rear Molded Splash Guards +$225
4" Chromed Round Assist Steps +$685
Rubber Bed Mat +$155
Pickup Box Delete -$1,230
Off-Road Assist Steps +$865
Tri-Fold Hard Tonneau cover +$995
LED Cargo Box Lighting +$125
Front and Rear Black Bow-Tie Emblems +$220
Spray-On Bed Liner +$495
4 Movable Upper Cargo Tie Downs +$60
17" x 6.5" Full-Size Steel Spare Wheel +$0
LT265/70R18E All-Season Blackwall Spare Tire +$360
Provision for Cab Roof-Mounted Lamp/Beacon +$30
LT235/80R17E Highway Spare Tire +$380
LT235/80R17E All-Terrain Spare Tires +$380
LT235/80R17E All-Terrain Blackwall Tires +$200
4" Round Black Tubular Assist Steps +$630
