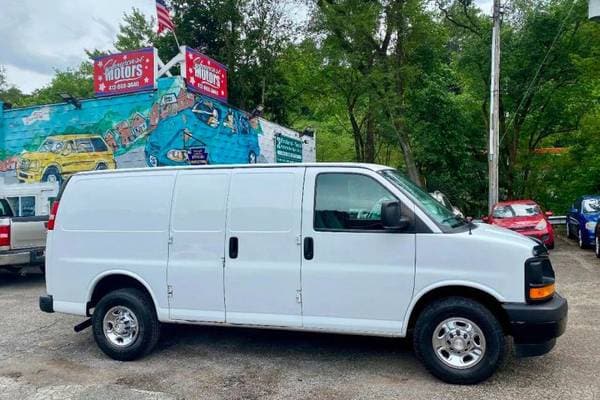

Used 2017 Chevrolet Express Cargo 3500 Specs & Features

Overview
Overview
Starting MSRP
$34,065

Engine TypeFlex-fuel (FFV)
Transmission6-speed automatic
Drive TypeRear wheel drive
CylindersV8
Total Seating2
Basic Warranty3 yr./ 36,000 mi.
Fuel & MPG
Fuel & MPG
Fuel typeFlex-fuel (unleaded/E85)
Range in miles (cty/hwy)0/0 mi.
Fuel tank capacity31.0 gal.
Engine
Engine
Base engine size4.8 L
CylindersV8
Base engine typeFlex-fuel (FFV)
Horsepower285 hp @ 5,400 rpm
Torque295 lb-ft @ 4,600 rpm
Valves16
Cam typeOverhead valves (OHV)
Valve timingVariable
Towing & Hauling
Towing & Hauling
Max Towing Capacity10,000 lbs.
Max Payload Capacity4,192 lbs.
Drivetrain
Drivetrain
Transmission6-speed automatic
Drive typeRear wheel drive
Suspension
Suspension
Front independent suspensionyes
Stabilizer bar stabilizer baryes
Dimensions
Dimensions
Length224.1 in.
Overall Width without Mirrors79.2 in.
Height84.5 in.
Wheel base135.0 in.
Cargo capacity, all seats in place239.7 cu.ft.
Maximum cargo capacity270.4 cu.ft.
Turning circle49.2 ft.
Ground clearance7.7 in.
Curb weight5,386 lbs.
Maximum towing capacity10,000 lbs.
Maximum payload4,192 lbs.
Gross weight9,600 lbs.
Colors
Colors
Exterior Colors
  • Graphite Metallic
  • Silver Ice Metallic
  • Black
  • Cyber Gray Metallic
  • Brownstone Metallic
  • Wheatland Yellow
  • Summit White
  • Red Hot
Interior Colors
  • Neutral, premium cloth
  • Medium Pewter, vinyl
  • Neutral, vinyl
  • Medium Pewter, premium cloth
Front Seat Dimensions
Front Seat Dimensions
Front head room39.8 in.
Front leg room41.3 in.
Front shoulder room68.8 in.
Front hip room65.5 in.
Vinylyes
Bucket front seatsyes
4 -way manual driver seat adjustmentsyes
4 -way manual passenger seat adjustmentyes
Safety
Safety
Dual front side-mounted airbagsyes
Front head airbagsyes
Passenger airbag deactivation switchyes
Stability controlyes
Traction controlyes
4-wheel ABSyes
Front and rear ventilated disc brakesyes
Tire pressure monitoringyes
Dusk sensing headlampsyes
Auto delay off headlampsyes
Daytime running lightsyes
2 front headrestsyes
Engine immobilizeryes
In-Car Entertainment
In-Car Entertainment
AM/FM stereoyes
2 total speakersyes
Auxiliary audio inputyes
Power Feature
Power Feature
Power door locksyes
Heated mirrorsyes
Comfort & Convenience
Comfort & Convenience
Power steeringyes
Front cupholdersyes
Front door pocketsyes
Single zone front air conditioningyes
Instrumentation
Instrumentation
Trip computeryes
Tachometeryes
Clockyes
Tires & Wheels
Tires & Wheels
Steel wheelsyes
Partial wheel coversyes
16 x 6.5 in. wheelsyes
All season tiresyes
LT245/75R E tiresyes
Fullsize non-matching spare tireyes
Underbody mounted spare tireyes
Warranty
Warranty
Basic3 yr./ 36,000 mi.
Drivetrain5 yr./ 60,000 mi.
Rust6 yr./ 100,000 mi.
Roadside5 yr./ 60,000 mi.
Mechanical Options
Mechanical Options
Remote Vehicle Starter System +$300
Heavy Duty Locking Rear Differential +$325
Equipment Accessory Wiring Junction Block +$80
Radiator Grille Cover +$80
Vortec 6.0L V8 SFI Engine +$995
High Idle Switch +$200
Duramax 2.8L 4-Cylinder Turbo-Diesel Engine +$4,000
Engine Block Heater +$100
8-Speed Automatic Transmission +$150
Isolated 2nd Battery +$165
Heavy Duty Battery +$60
150-Amp Alternator +$75
220 Amp Alternator +$150
Packages
Packages
Smoker's Package +$35
Cold Climate Package w/Diesel +$875
Cold Climate Package +$100
Chrome Appearance Package +$355
Security Screen Package +$140
Fixed Glass Full-Body Window Package +$315
Safety & Security Options
Safety & Security Options
Rear View Camera +$200
Rear Park Assist +$295
Interior Options
Interior Options
Rear Air Conditioning +$860
Leather Wrapped Steering Wheel +$185
Auxiliary Rear Heater +$295
Air Conditioning Delete -$185
Deluxe Console +$20
Outside Temperature Display +$10
Vinyl Sunshade +$10
Convenience Package +$395
Auxiliary Heat Generator +$875
Spray-In Cargo Liner +$995
Electric Rear Window Defogger +$155
Auxiliary Lighting +$85
Brake Warning Indicator +$65
Remote Keyless Entry +$170
Interior Door Trim Panel Delete -$95
Rear Floor Covering Delete -$90
Express Crew Van Package w/ 5-Passenger Seating Arrangement +$1,025
Bulkhead Divider w/Door +$625
Bulkhead Divider +$595
Bluetooth for Phone +$50
AM/FM Radio w/CD/MP3 Player +$150
AM/FM Stereo w/USB Port +$100
OnStar +$175
Chevrolet MyLink Radio w/Navigation +$1,025
Custom Cloth Front Bucket Seats +$70
Driver Only Front High Back Bucket Seat -$185
6-Way Power Driver Seat Adjuster +$275
Exterior Options
Exterior Options
Chrome Front and Rear Bumpers w/Step-Pad +$65
Body-Colored Rear Halo Trim +$120
Fixed Glass - Rear/Side Cargo Doors +$130
Fixed Glass - Rear/Side Cargo Door w/Rear Passenger Side Quarter Window +$145
Chrome Grille w/Dual Composite Halogen Headlamps +$225
Solar-Ray Deep Tinted Windows +$440
Heavy Duty Trailering Equipment +$280
Spare Tire Delete -$175
Chrome Center Cap Wheel Trim +$60
Trailer Wiring +$80
Painted White Wheels +$25
Molded Assist Steps +$590
Removable Roof Rack +$385
Swing Out Ladder Rack +$1,105
Antenna Equipment +$50
Sliding Passenger-Side Door +$150
High and Low Dual-Note Horn +$15
Fixed Glass - Right Side Cargo Door +$105
Power, Heated Exterior Mirrors +$115
Fixed Glass - Rear Doors +$60
Glass Swing-Out Rear Side Door and Rear Door Window +$160
Black Heated Outside Power-Adjustable Manual Folding Mirrors +$115
Glass Swing-Out Rear Cargo Door Windows +$80
