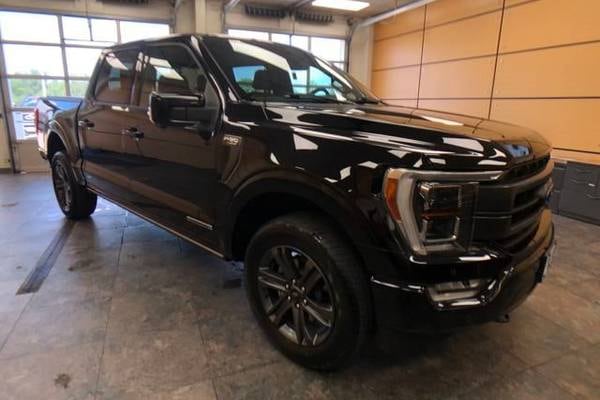

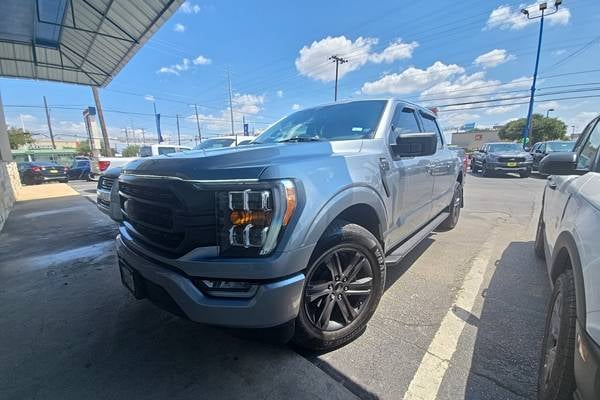

2023 Ford F-150 - Specs & Features
Most Popular
XLT 4dr SuperCrew 4WD 5.5 ft. SB
3.3L 6cyl 10A
Starting MSRP
$50,220
| Overview | |
|---|---|
| Engine Type | Flex-fuel (FFV) |
| Transmission | 10-speed shiftable automatic |
| Drive Type | Four wheel drive |
| Cylinders | V6 |
| Total Seating | 6 |
| Basic Warranty | 3 yr./ 36,000 mi. |
| Fuel & MPG | |
|---|---|
| Fuel type | Flex-fuel (unleaded/E85) |
| EPA city/highway MPG | 19/22 MPG |
| EPA combined MPG | 20 MPG |
| Range in miles (city/hwy) | 494.0/572.0 mi. |
| Fuel tank capacity | 26.0 gal. |
| Engine | |
|---|---|
| Base engine size | 3.3 L |
| Cylinders | V6 |
| Base engine type | Flex-fuel (FFV) |
| Horsepower | 290 hp @ 6,500 rpm |
| Torque | 265 lb-ft @ 4,000 rpm |
| Valves | 24 |
| Cam type | Double overhead cam (DOHC) |
| Valve timing | Variable |
| Direct injection | Standard |
| Towing & Hauling | |
|---|---|
| Max Towing Capacity | 13,900 lbs. |
| Max Payload Capacity | 1,765 lbs. |
| Drivetrain | |
|---|---|
| Transmission | 10-speed shiftable automatic |
| Drive type | Four wheel drive |
| Part time 4WD | Standard |
| Electronic hi-lo gear selection | Standard |
| Automatic locking hubs | Standard |
| Suspension | |
|---|---|
| Front independent suspension | Standard |
| Stabilizer bar stabilizer bar | Standard |
| Dimensions | |
|---|---|
| Length | 231.7 in. |
| Overall width with mirrors | 95.7 in. |
| Overall width without mirrors | 79.9 in. |
| Height | 77.2 in. |
| Wheelbase | 145.4 in. |
| Bed length | 67.1 in. |
| Turning circle | 47.8 ft. |
| Ground clearance | 9.4 in. |
| Angle of approach | 24.3 degrees |
| Angle of departure | 25.3 degrees |
| Curb weight | 4,705 lbs. |
| Maximum towing capacity | 13,900 lbs. |
| Maximum payload | 1,765 lbs. |
| Gross weight | 6,470 lbs. |
| Country of final assembly | United States |
| Colors | |
|---|---|
| Exterior Colors |
|
| Interior Colors |
|
| Front Seat Dimensions | |
|---|---|
| Front head room | 40.8 in. |
| Front leg room | 43.9 in. |
| Front shoulder room | 66.7 in. |
| Front hip room | 62.5 in. |
| Cloth | Standard |
| 40-20-40 split bench front seats | Standard |
| 4-way manual driver seat adjustments | Standard |
| Driver seat with manual adjustable lumbar support | Standard |
| 4-way manual passenger seat adjustment | Standard |
| Passenger seat with manual adjustable lumbar support | Standard |
| Rear Seat Dimensions | |
|---|---|
| Rear head room | 40.4 in. |
| Rear leg room | 43.6 in. |
| Rear shoulder room | 66.0 in. |
| Rear hip room | 62.6 in. |
| Split-folding rear seatback | Standard |
| Safety | |
|---|---|
| Blind spot and lane departure warnings accident avoidance system | Standard |
| Lane keep assist | Standard |
| Rear cross traffic alert | Standard |
| Driver attention alert | Standard |
| Pre-collision safety system | Standard |
| Post-collision safety system | Standard |
| Dual front side-mounted airbags | Standard |
| Front and rear head airbags | Standard |
| Passenger airbag occupant sensing deactivation | Standard |
| Stability control | Standard |
| Traction control | Standard |
| Child seat anchors | Standard |
| Rear door child safety locks | Standard |
| 4-wheel ABS | Standard |
| Front and rear ventilated disc brakes | Standard |
| Emergency braking preparation | Standard |
| Emergency braking assist | Standard |
| Tire pressure monitoring | Standard |
| Dusk sensing headlamps | Standard |
| Auto delay off headlamps | Standard |
| Daytime running lights | Standard |
| Front fog/driving lights | Standard |
| 3 front headrests | Standard |
| Front height adjustable headrests | Standard |
| 3 rear headrests | Standard |
| Rear height adjustable headrests | Standard |
| Front center 3-point belt | Standard |
| Rear center 3-point belt | Standard |
| Remote anti-theft alarm system | Standard |
| Engine immobilizer | Standard |
| In-Car Entertainment | |
|---|---|
| 8.0" infotainment display size | Standard |
| AM/FM stereo | Standard |
| 6 total speakers | Standard |
| Wireless Android Auto/Apple CarPlay | Standard |
| USB connection | Standard |
| USB with external media control | Standard |
| Power Feature | |
|---|---|
| 2 one-touch power windows | Standard |
| Remote keyless power door locks | Standard |
| Heated mirrors | Standard |
| Comfort & Convenience | |
|---|---|
| Tilt and telescopic steering wheel | Standard |
| Audio and cruise controls on steering wheel | Standard |
| Power steering | Standard |
| Rear view camera | Standard |
| Rear parking sensors | Standard |
| Cruise control | Standard |
| Front and rear door pockets | Standard |
| Front seatback storage | Standard |
| Single zone front air conditioning | Standard |
| Dual vanity mirrors | Standard |
| Instrumentation | |
|---|---|
| Trip computer | Standard |
| Compass | Standard |
| External temperature display | Standard |
| Tachometer | Standard |
| Clock | Standard |
| Tires & Wheels | |
|---|---|
| Painted alloy wheels | Standard |
| 17 in. wheels | Standard |
| All terrain tires | Standard |
| 265/70R17 tires | Standard |
| Fullsize non-matching spare tire | Standard |
| Underbody mounted spare tire | Standard |
| Telematics | |
|---|---|
| Airbag Deployment Notification | Standard |
| Destination guidance (also Turn-by-Turn Navigation) | Standard |
| Destination Download | Standard |
| Warranty | |
|---|---|
| Basic | 3 yr./ 36,000 mi. |
| Drivetrain | 5 yr./ 60,000 mi. |
| Rust | 5 yr./ unlimited mi. |
| Roadside assistance | 5 yr./ 60,000 mi. |
| Mechanical Options | |
|---|---|
| Trailer Brake Controller | +$275 |
| 3.5L EcoBoost V6 | +$2,735 |
| 3.5L PowerBoost Full Hybrid V6 | +$4,495 |
| 3.5L PowerBoost Full Hybrid V6 | +$4,495 |
| 2.7L EcoBoost V6 | +$1,285 |
| 5.0L V8 w/Flex-Fuel Capability | +$2,335 |
| E-Locking 3.55 Axle | +$470 |
| E-Locking 3.31 Axle | +$420 |
| E-Locking 3.73 Axle | +$570 |
| Extended Range 36 Gallon Fuel Tank | +$445 |
| Extended Range 36 Gallon Fuel Tank (Fleet) | +$445 |
| Remote Start System | +$195 |
| Auto Start-Stop Removal | -$50 |
| Engine Block Heater | +$90 |
| Packages | |
|---|---|
| XLT Chrome Appearance Package | +$1,895 |
| Max Trailer Tow Package | +$2,215 |
| Trailer Tow Package | +$1,325 |
| Max Trailer Tow Package | +$2,215 |
| Heritage Edition | +$1,975 |
| XLT Black Appearance Package | +$1,370 |
| Snow Plow Prep | +$50 |
| FX4 Off-Road Package | +$1,095 |
| FX4 Off-Road Package | +$1,095 |
| FX4 Off-Road Package | +$1,095 |
| XLT Chrome/Sport Appearance Package Discount | -$750 |
| Equipment Group 302A | +$3,955 |
| Equipment Group 300A | +$0 |
| XLT Sport Appearance Package | +$2,205 |
| Equipment Group 301A | +$1,230 |
| Equipment Group 300A Discount (Fleet) | -$500 |
| Bed Utility Package | +$695 |
| XLT Sport Appearance Package | +$465 |
| 2.7L V6 EcoBoost Payload Package | +$750 |
| Safety & Security Options | |
|---|---|
| Co-Pilot 360 Assist 2.0 | +$750 |
| 360-Degree Camera | +$765 |
| Backup Alarm System (Fleet) | +$145 |
| Daytime Running Lamps (Fleet) | +$45 |
| Individual Trailer TPMS/Customer-Placed Trailer Camera | +$1,115 |
| 360-Degree Camera | +$765 |
| Interior Options | |
|---|---|
| Ash Cup w/Lighter | +$80 |
| Partitioned Lockable Underseat Storage | +$215 |
| Power Adjustable Pedals | +$170 |
| SYNC 4 Mid w/Digital Assistant (Fleet) | +$325 |
| Cloth 40/Console/40 Front Seat | +$295 |
| 8-Way Power Driver Seat (Fleet) | +$350 |
| B&O Sound System by Bang & Olufsen w/HD Radio | +$610 |
| 110V/400W Outlet | +$340 |
| Ash Cup w/Coin Holder | +$45 |
| Commercial Roadside Assistance Kit | +$230 |
| Keyless Entry Keypad | +$130 |
| 40/20/40 Removable Cup Tray | +$60 |
| Interior Work Surface | +$195 |
| In-Vehicle Safe by Console Vault | +$400 |
| Tray Style Rubber Floor Liners | +$160 |
| Roadside Assistance Kit w/Ford Logo | +$70 |
| First Aid Kit w/Ford Logo | +$50 |
| Tray Style Rubber Floor Liners w/Carpeted Matching Floor Mats | +$200 |
| Exterior Options | |
|---|---|
| LT275/65R18C Outline White Lettering All-Terrain Tires | +$295 |
| 18" Silver Aluminum Wheels | +$95 |
| Power Sliding Rear Window | +$350 |
| Bright Polished Step Bars (Fleet) | +$635 |
| Skid Plates (Fleet) | +$160 |
| Wheel Well Liner | +$180 |
| BoxLink | +$80 |
| 6" Extended Bright Polished Running Boards | +$1,005 |
| Class IV Trailer Hitch | +$315 |
| Manual-Folding, Dual Power Glass Heated Sideview Mirrors | +$190 |
| Onboard Scales w/Smart Hitch | +$650 |
| Black Platform Running Boards | +$250 |
| LED Side-Mirror Spotlights | +$175 |
| Exposed Lug Wheel Lock Kit | +$75 |
| Amber LED Warning Strobes by Sound Off Signal (Fleet) | +$600 |
| Stowable Bed Ramps | +$595 |
| Twin Panel Moonroof | +$1,495 |
| Horizontal Bed Cargo Net | +$75 |
| 6" Extended Dark Grey Accent Running Boards | +$225 |
| Vertical Bed Cargo Net | +$75 |
| Retractable Tonneau Pickup Box Cover | +$2,200 |
| Front & Rear Molded Splash Guards | +$235 |
| Sportliner by BedRug | +$550 |
| Pro Power Onboard - 7.2kW | +$750 |
| Amber/White LED Warning Strobes by Sound Off Signal (Fleet) | +$600 |
| Chrome Exhaust Tips | +$105 |
| Pro Power Onboard - 2kW | +$995 |
| Bed Tray | +$285 |
| Bed Divider | +$410 |
| Bed Tailgate Lock by McGard | +$70 |
| Foldable Pickup Box Bed Extender | +$465 |
| Tailgate Viscous Dampening | +$155 |
| Pivot Storage Box | +$290 |
| Manual-Folding, Dual Manual Glass Mirrors | +$275 |
| Black Tailgate Decals | +$90 |
| Removable Bed Mat | +$210 |
| Tough Bed Spray-In Bedliner | +$595 |
| LT245/70R17E Black Side Wall All-Terrain Tires (Fleet) | +$295 |
| Plastic Drop-In Bedliner | +$350 |
| 20" Six-Spoke Dark Alloy Painted Aluminum Wheels | +$1,495 |
| Class IV Trailer Hitch | +$315 |
| 20" Chrome-Like PVD Wheels | +$1,495 |
| Soft Folding Tonneau Pickup Box Cover | +$590 |
| Front License Plate Bracket | +$0 |
| Hard Folding Tonneau Pickup Box Cover | +$1,200 |
| Two-Tone Paint (Fleet) | +$250 |
| Two-Tone Paint | +$250 |
| Bright Polished Step Bars | +$635 |
