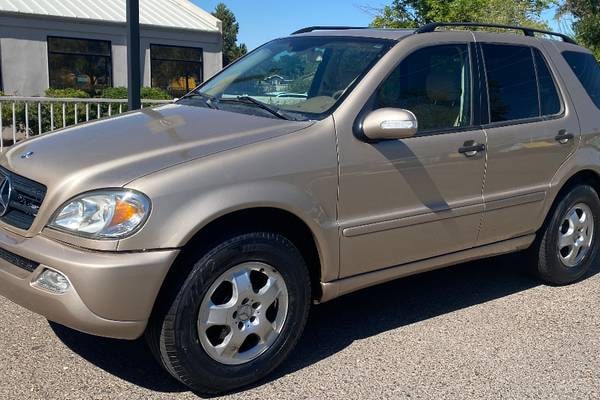

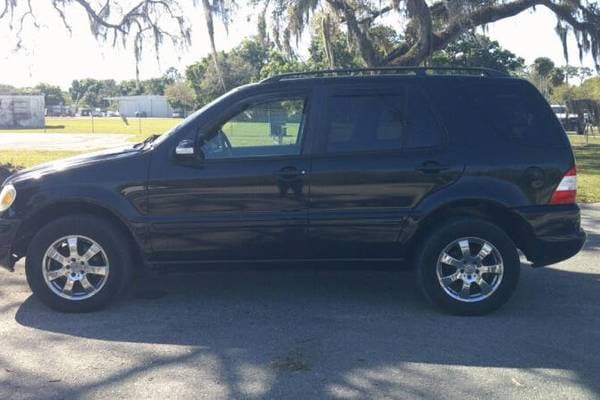

Used 2004 Mercedes-Benz M-Class Specs & Features

Starting MSRP

Engine TypeGas
Transmission5-speed shiftable automatic
Drive TypeAll wheel drive
Total Seating5
Basic Warranty4 yr./ 50,000 mi.
Fuel & MPG
Fuel & MPG
Fuel typePremium unleaded (required)
EPA city/highway MPG14/17 MPG
EPA combined MPG15 MPG
Range in miles (city/hwy)316.4/384.2 mi.
Fuel tank capacity22.6 gal.
Base engine size3.7 L
Base engine typeGas
Horsepower232 hp @ 5,750 rpm
Torque254 lb-ft @ 3,000 rpm
Cam typeSingle overhead cam (SOHC)
Towing & Hauling
Towing & Hauling
Max Towing Capacity5,000 lbs.
Transmission5-speed shiftable automatic
Drive typeAll wheel drive
Hi-lo gear selectionyes
Mechanical center differentialyes
Descent controlyes
Four-wheel independent suspensionyes
Double wishbone front suspensionyes
Double wishbone rear suspensionyes
Length182.6 in.
Overall width without mirrors72.4 in.
Height71.7 in.
Wheelbase111 in.
Front track60.4 in.
Rear track60.4 in.
Cargo capacity, all seats in place34.7 cu.ft.
Maximum cargo capacity81.2 cu.ft.
Turning circle39 ft.
Ground clearance8.7 in.
Angle of approach29 degrees
Angle of departure30 degrees
Curb weight4,819 lbs.
Maximum towing capacity5,000 lbs.
Exterior Colors
  • Black
  • Black Opal Metallic
  • Desert Silver Metallic
  • Obsidian Black Metallic
  • Bordeaux Red Metallic
  • Capri Blue Metallic
  • Platinum Blue Metallic
  • Alabaster White
  • Brilliant Silver Metallic
  • Everest Green Metallic
Interior Colors
  • designo Java/Borneo
  • Ash
  • Charcoal
  • designo Charcoal
  • designo Ash
  • designo Java
  • Java
Front Seat Dimensions
Front Seat Dimensions
Front head room39.8 in.
Front leg room40.3 in.
Front shoulder room58.2 in.
Front hip room55 in.
Bucket front seatsyes
6-way manual driver seat adjustmentsyes
Height adjustable driver seatyes
6-way manual passenger seat adjustmentyes
Height adjustable passenger seatyes
Rear Seat Dimensions
Rear Seat Dimensions
Rear head room39.7 in.
Rear leg room38 in.
Rear shoulder room57.8 in.
Rear hip room54.7 in.
Split-folding rear seatbackyes
Folding center armrestyes
Dual front and dual rear side-mounted airbagsyes
Front and rear head airbagsyes
Passenger airbag occupant sensing deactivationyes
Stability controlyes
Traction controlyes
Child seat anchorsyes
4-wheel ABSyes
Ventilated front disc / solid rear disc brakesyes
Emergency braking assistyes
Electronic brakeforce distributionyes
Dusk sensing headlampsyes
Auto delay off headlampsyes
Daytime running lightsyes
Front fog/driving lightsyes
Turn signal mirrorsyes
2 front headrestsyes
3 rear headrestsyes
Rear multi-adjustable headrestsyes
Rear center 3-point beltyes
Front and rear seatbelt pretensionersyes
Remote anti-theft alarm systemyes
Engine immobilizeryes
In-Car Entertainment
In-Car Entertainment
AM/FM stereoyes
6 total speakersyes
Speed sensitive volume controlyes
Element antennayes
Power Feature
Power Feature
4 one-touch power windowsyes
Remote keyless power door locksyes
Power mirrorsyes
Heated mirrorsyes
Comfort & Convenience
Comfort & Convenience
Tilt-adjustable steering wheelyes
Power steeringyes
12V rear and 12V cargo area power outlet(s)yes
Cruise controlyes
Universal remote transmitter (for garage door, security system, etc.)yes
Front and rear cupholdersyes
Front and rear door pocketsyes
Front seatback storageyes
Leather steering wheelyes
Single zone front climate controlyes
Rear ventilation ducts with fan controlyes
Interior air filtrationyes
Dual illuminating vanity mirrorsyes
Turn signal in mirrorsyes
Rear floor matsyes
Cargo area lightyes
Wood trim on center consoleyes
Wood trim on doorsyes
Leather trim on shift knobyes
Front and rear reading lightsyes
External temperature displayyes
Low fuel level warningyes
Tires & Wheels
Tires & Wheels
Alloy wheelsyes
17 x 8 in. wheelsyes
All season tiresyes
255/60R H tiresyes
Steel spare wheelyes
Temporary spare tireyes
Underbody mounted spare tireyes
Basic4 yr./ 50,000 mi.
Drivetrain4 yr./ 50,000 mi.
Rust4 yr./ 50,000 mi.
RoadsideUnlimited yr./ unlimited mi.
