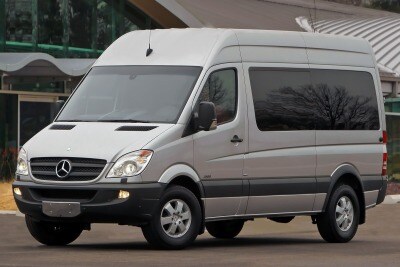

Used 2013 Mercedes-Benz Sprinter 2500 170 WB Crew - Specs & Features
Starting MSRP
$43,150
| Overview Diesel | |
|---|---|
| Engine Type | Diesel |
| Transmission | 5-speed shiftable automatic |
| Drive Type | Rear wheel drive |
| Cylinders | V6 |
| Total Seating | 5 |
| Basic Warranty | 3 yr./ 36,000 mi. |
| Fuel & MPG | |
|---|---|
| Fuel type | Diesel fuel |
| Range in miles (city/hwy) | 0/0 mi. |
| Fuel tank capacity | 26.4 gal. |
| Engine | |
|---|---|
| Base engine size | 3.0 L |
| Cylinders | V6 |
| Base engine type | Diesel |
| Horsepower | 188 hp @ 3,800 rpm |
| Torque | 325 lb-ft @ 1,400 rpm |
| Valves | 24 |
| Cam type | Double overhead cam (DOHC) |
| Direct injection | Standard |
| Towing & Hauling | |
|---|---|
| Max Towing Capacity | 5,000 lbs. |
| Max Payload Capacity | 2,865 lbs. |
| Drivetrain | |
|---|---|
| Transmission | 5-speed shiftable automatic |
| Drive type | Rear wheel drive |
| Suspension | |
|---|---|
| Front independent suspension | Standard |
| MacPherson strut front suspension | Standard |
| Front and rear stabilizer bar | Standard |
| Dimensions | |
|---|---|
| Length | 273.2 in. |
| Overall width without mirrors | 79.7 in. |
| Height | 107.5 in. |
| Wheelbase | 170.3 in. |
| Front track | 67.2 in. |
| Rear track | 60.9 in. |
| Cargo capacity, all seats in place | 380.0 cu.ft. |
| Maximum cargo capacity | 380.0 cu.ft. |
| Ground clearance | 7.8 in. |
| Angle of approach | 19.0 degrees |
| Angle of departure | 15.0 degrees |
| Curb weight | 5,865 lbs. |
| Maximum towing capacity | 5,000 lbs. |
| Maximum payload | 2,865 lbs. |
| Gross weight | 8,550 lbs. |
| Country of final assembly | Germany/United States |
| Colors | |
|---|---|
| Exterior Colors |
|
| Interior Colors |
|
| Front Seat Dimensions | |
|---|---|
| Cloth | Standard |
| Bucket front seats | Standard |
| 4-way manual driver seat adjustments | Standard |
| 4-way manual passenger seat adjustment | Standard |
| Safety | |
|---|---|
| Stability control | Standard |
| Traction control | Standard |
| Child seat anchors | Standard |
| 4-wheel ABS | Standard |
| Ventilated front disc / solid rear disc brakes | Standard |
| Emergency braking assist | Standard |
| Electronic brakeforce distribution | Standard |
| Tire pressure monitoring | Standard |
| Turn signal mirrors | Standard |
| 2 front headrests | Standard |
| Front height adjustable headrests | Standard |
| 3 rear headrests | Standard |
| Rear height adjustable headrests | Standard |
| Rear center 3-point belt | Standard |
| Front seatbelt pretensioners | Standard |
| Engine immobilizer | Standard |
| In-Car Entertainment | |
|---|---|
| AM/FM CD-controller stereo | Standard |
| 80 watts stereo output | Standard |
| 5 total speakers | Standard |
| Speed sensitive volume control | Standard |
| Power Feature | |
|---|---|
| Remote keyless power door locks | Standard |
| Power mirrors | Standard |
| Heated mirrors | Standard |
| Comfort & Convenience | |
|---|---|
| Tilt and telescopic steering wheel | Standard |
| Power steering | Standard |
| Front and rear cupholders | Standard |
| Front door pockets | Standard |
| Overhead console with storage | Standard |
| Single zone front air conditioning | Standard |
| Turn signal in mirrors | Standard |
| Rear floor mats | Standard |
| Cargo area light | Standard |
| Instrumentation | |
|---|---|
| Compass | Standard |
| External temperature display | Standard |
| Tachometer | Standard |
| Clock | Standard |
| Low fuel level warning | Standard |
| Tires & Wheels | |
|---|---|
| Steel wheels | Standard |
| 16 x 6.5 in. wheels | Standard |
| All season tires | Standard |
| LT245/75R16 tires | Standard |
| Steel spare wheel | Standard |
| Fullsize matching spare tire | Standard |
| Underbody mounted spare tire | Standard |
| Warranty | |
|---|---|
| Basic | 3 yr./ 36,000 mi. |
| Drivetrain | 5 yr./ 100,000 mi. |
| Rust | 5 yr./ 100,000 mi. |
| Roadside assistance | 3 yr./ 36,000 mi. |
| Mechanical Options | |
|---|---|
| Axle Ratio 4.18 | +$0 |
| Auxiliary Front 5kW Heater | +$1,510 |
| 5kW Heater Booster | +$580 |
| Sealing Of Speedometer Drive | +$60 |
| Rear Spring Vibration Absorbers | +$120 |
| Suspension w/H.D. Front & Rear Stabilizer | +$125 |
| Small 3.2 Gallon DEF Tank In Engine Compartment | +$0 |
| Top Speed Limitation At 74 MPH | +$65 |
| Bracket For Auxiliary Alternator | +$400 |
| Bracket For Auxiliary AC Compressor | +$400 |
| High Idle Preset | +$355 |
| Packages | |
|---|---|
| Accessory Package | +$1,555 |
| Premium Package | +$615 |
| Suspension Seating Package | +$735 |
| Contractor Package | +$560 |
| Multifunction Wheel/Display Package | +$295 |
| High Idle Variable Package | +$615 |
| High Idle Fixed Package | +$585 |
| High Performance Air Conditioning Package | +$3,335 |
| Cold Climate Package | +$695 |
| Crew Van Heating Package | +$770 |
| Lighting Package | +$1,125 |
| Parktronic Package | +$1,010 |
| Security Package | +$1,525 |
| Trailer Hitch Package | +$345 |
| Spare Tire Deletion Package | -$110 |
| Additional Battery Package | +$385 |
| Safety & Security Options | |
|---|---|
| Rear Backup Alarm | +$85 |
| Light And Rain Sensor | +$250 |
| Fog Lamps | +$190 |
| Daytime Running Lamps | +$50 |
| Driver Thorax Airbag | +$310 |
| Driver/Passenger Thorax Airbag | +$430 |
| Driver/Passenger Window Airbag | +$740 |
| Driver And Front Passenger Orange Seat Belts | +$25 |
| First Aid Kit | +$20 |
| Emergency Flashlight | +$25 |
| Parktronic System (PTS) | +$910 |
| Rear View Camera | +$920 |
| Security Alarm w/Interior Motion Sensor | +$540 |
| Interior Options | |
|---|---|
| Rear Heater Preparation | +$345 |
| Storage Net On Driver Seat Backrest | +$55 |
| Storage Net On Passenger Seat Backrest | +$55 |
| Overhead Control Panel w/2 Reading Lights | +$100 |
| Passenger Comfort Seat | +$200 |
| Cruise Control | +$330 |
| Driver Comfort Seat | +$200 |
| D-Ring Cargo Straps | +$70 |
| 12V Power Outlet At Driver Seat Base | +$75 |
| Radio Sound 20 | +$895 |
| Pre-Installation For Radio | -$265 |
| AGM Battery 12V 95 Ah | +$145 |
| Parametric Special Module (PSM) | +$270 |
| Electrically Heated Windshield | +$410 |
| 12V Power Outlet In Rear Compartment | +$60 |
| Lockable Glove Compartment | +$20 |
| Storage Slot At Front Under Roof Liner | +$90 |
| Aux-In Interface | +$100 |
| Hinged Lid For Storage Compartment | +$70 |
| Heat Insulation Rear Compartment | +$125 |
| Heat Insulation Front Compartment | +$125 |
| Two Additional Masters Keys | +$105 |
| Warm/Cool Air Duct | +$75 |
| Exterior Options | |
|---|---|
| Windshield w/Filter Band | +$50 |
| Primed Front & Rear Bumpers | +$310 |
| Primed Side Molding | +$310 |
| High Roof | +$2,380 |
| Mounting Rails For Roof Rack | +$255 |
| Illuminated Exits | +$110 |
| Tire Sealant | +$25 |
| Assist Handle For Right Rear Door | +$50 |
| Assist Handle For Left Rear Door | +$50 |
| Two Stage Opening Sliding Door | +$25 |
| Side Door Badging Deletion | +$0 |
| Front License Plate Deletion | -$5 |
| Grey Rear Door Step | +$160 |
| Spring Loaded Rear Bumper Step | +$510 |
| Rear Door Badging Deletion | +$0 |
| Headlamp Washing System | +$255 |
| Unspecified Tires Brand | +$0 |
| Jet Black Painted Wheels | +$70 |
| Heated And Electrically Adjustable Exterior Mirrors | +$235 |
| M+S Tires | +$120 |
| Arctic White Painted Wheels | +$70 |
| Light Alloy Wheels | +$830 |
| Chrome Trimmed Radiator Grille | +$230 |
