2017 Ford Transit Connect Wagon XL w/Rear Liftgate LWB Features & Specs

Select a different vehicle
Recently Viewed
There are no recently viewed vehicles to display

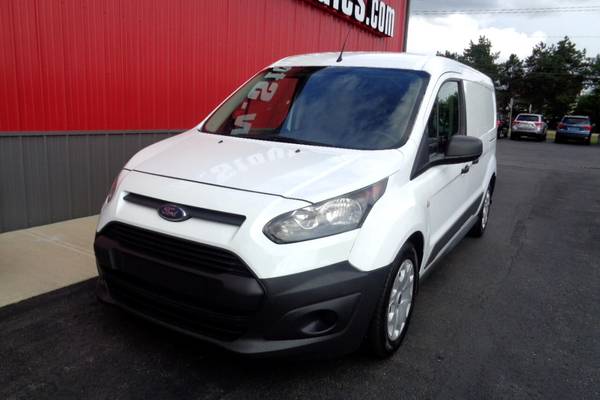

2017 Ford Transit Connect

Wagon XL w/Rear Liftgate LWB Passenger Minivan

(2.5L 4-cyl. 6-speed Automatic)

Change Vehicle
Highlights
  • FUEL ECONOMY (CTY/HWY) 19/27 mpg
  • CAR TYPE Minivan
  • TRANSMISSION 6-speed Shiftable Automatic
  • BASIC WARRANTY 3 Yr./ 36000 Mi.
  • BLUETOOTH No
  • HEATED SEATS No
  • ENGINE TYPE Gas
  • TOTAL SEATING 7
  • CYLINDERS Inline 4
  • DRIVE TRAIN Front Wheel Drive
  • CONSUMER RATING Not Available
  • NAVIGATION No
Colors

Exterior Colors

Dark Blue Deep Impact Blue Metallic Frozen White Guard Metallic Magnetic Metallic Race Red Shadow Black Silver Metallic Solar Metallic

Interior Colors

Charcoal Black, cloth Pewter, vinyl
Specifications
LENGTH 15ft 9.7in
WIDTH 6ft 0.2in
HEIGHT
6ft 0in
GROUND CLEARANCE
0ft 6.4in
Body style illustration may not reflect the actual shape of this vehicle.

Exterior Measurements

0 ft. 6.4 in. (6.4 in.) 6 ft. 0 in. (72 in.)
15 ft. 9.7 in. (189.7 in.) 10 ft. 0.6 in. (120.6 in.)
6 ft. 0.2 in. (72.2 in.)

Interior Measurements

46.8 in. 54.1 in.
41.5 in. 57.6 in.
45.1 in. 58.2 in.
37.6 in. 58.5 in.

Fuel

22 19/27 mpg
15.8 gal. Flex-fuel (unleaded/E85)
300.2/426.6 mi.

Weights and Capacities

3979 lbs. 181.6 cu.ft.
5280 lbs. 1270 lbs.
2000 lbs. 15.7 cu.ft.
104.2 cu.ft.
** When adequately equipped, which may require engine and/or other drivetrain upgrades.

DriveTrain

Front wheel drive 6-speed shiftable automatic

Engine & Performance

2.5 L Gas
Double overhead cam (DOHC) Inline 4
169 hp @ 6000 rpm 171 ft-lbs. @ 4500 rpm
40.0 ft. Variable
16

Suspension

  • Front independent suspension

  • Front and rear stabilizer bar

Warranty

3 yr./ 36000 mi. 5 yr./ 60000 mi.
5 yr./ 60000 mi.
Interior Features

Interior Features

3rd Row Seats


removable bucket
one-piece folding

2nd Row Seats


40-60 split bench
split folding

1ST_ROW_SEATING_CAPACITY:2
2ND_ROW_SEATING_CAPACITY:3
3RD_ROW_SEATING_CAPACITY:2
total_seating:7

1st Row Seats


bucket

Standard seating shown. Other seating may be available as optional equipment.

Front Seats

  • 4 -way manual passenger seat adjustment

  • 6 -way manual driver seat adjustments

  • Bucket front seats

  • Fold flat passenger seat

  • Height adjustable driver seat

  • Vinyl

  • Driver seat with manual adjustable lumbar support

Rear Seats

  • One-piece folding third row seats

  • Rear ventilation ducts with fan control

  • Split-folding rear seatback

Power Features

  • 1 one-touch power windows

  • Remote keyless power door locks

  • Heated mirrors

Instrumentation

  • Clock

  • External temperature display

  • Tachometer

Convenience

  • Cruise control

  • Electric power steering

  • Front door pockets

  • Front, rear and 3rd row cupholders

  • Overhead console with storage

  • Rear parking sensors

  • Tilt and telescopic steering wheel

  • Cruise controls on steering wheel

Comfort

  • Simulated alloy steering wheel

  • Air conditioning

In Car Entertainment

  • 4 total speakers

  • Auxiliary audio input

  • AM/FM stereo

Exterior Features

Exterior Features

Roof and Glass

  • Rear defogger

  • Rear window wiper

  • Variable intermittent wipers

Truck Features

  • Vinyl floor covering

Tires and Wheels

  • Full wheel covers

  • Fullsize matching spare tire

  • Steel wheels

  • Underbody mounted spare tire

  • 16 x 6.5 in. wheels

  • All season tires

  • P215/55R16 97H tires

Doors

  • Rear liftgate door

Towing and Hauling

  • Cargo tie downs

Safety Features

  • 2 front headrests

  • 3 rear headrests

  • Auto delay off headlamps

  • Dual front side-mounted airbags

  • Engine immobilizer

  • Front, rear and third row head airbags

  • Stability control

  • Tire pressure monitoring

  • Traction control

  • 4-wheel ABS

  • Emergency braking assist

  • Front and rear ventilated disc brakes

  • Passenger airbag occupant sensing deactivation

  • Rear center 3-point belt

  • Rear height adjustable headrests

  • Additional Key Fobs

  • MyKey

  • Forward and Reverse Sensing System

  • Perimeter Anti-Theft Alarm System

Optional Features

Packages

  • Smoker's Package

  • Trailer Tow Package

  • CNG/LPG Gaseous Engine Prep Package

Exterior Options

  • Power Adjustable Heated Exterior Mirrors

  • Privacy Glass

  • Roof Rails

  • Quickclear Windshield Defroster

  • Roof Rails w/Crossbars

  • Tire Repair Kit

  • Front and Rear Splash Guards/Mud Flaps

  • Daytime Running Lights

  • Front License Plate Bracket

  • Electric Rear Window Defroster

Interior Options

  • Aircraft Style Mid-Vehicle Overhead Console

  • Adaptive Cornering Front Fog Lamps

  • AM/FM Stereo w/CD Player/SYNC/MyFord/Rear View Camera

  • Ford Telematics - Powered by Telogis

  • AM/FM Stereo w/CD Player

  • AM/FM Stereo w/CD Player/Rear View Camera

  • AM/FM Stereo w/CD Player & SYNC/MyFord

  • Vertical Cargo Net Kit

  • Full Cloth Seats

Mechanical Options

  • Engine Block Heater

  • Gas 2.5L Inline-4 Engine
