Crash Tests: Feds Raise the Bar on Car Safety

How the NHTSA's Decades-Old Tests Will Get Tougher


  • NHTSA Frontal Crash Test

    NHTSA Frontal Crash Test

    NHTSA is revising its frontal crash test to include smaller crash dummies, so women and larger children are represented. | March 18, 2010

5 Photos

Update: In October 2010, the National Highway Traffic Safety Administration revised its Five-Star Safety Ratings. Click here for the most current information.

If you give a test and everyone gets an "A," there's a problem. Clearly the test may be too easy and it's no incentive to do better. That's what is happening with vehicle crash tests.

Here's the problem: In 2006, 95 percent of the vehicles tested won a top four- or five-star rating from the National Highway Transportation Safety Administration (NHTSA), primarily because its testing methods are decades old and don't reflect real-world crashes. "We are going to make the tests much harder," said NHTSA administrator Nicole Nason.

How Crash Tests Help
Every automobile sold in the U.S. meets minimum government standards for safety. But crash test scores give us a way to compare the performance of similar vehicles.

NHTSA's crash test program, called the New Car Assessment Program (NCAP), tests 75-100 vehicles a year, picking the most popular and those that are redesigned or get changes that might affect crash performance. Vehicles are purchased from dealers to best represent what consumers are buying.

The NCAP includes frontal crash tests, side-impact tests and two rollover tests — one based on mathematical formulas rather than real crashes, the other a "tip up" rollover test using test vehicles. Test results combine into star ratings, called "Stars on Cars." Five stars is the highest rank, indicating less than a 10 percent chance of life-threatening injury; one star is the lowest, indicating a 46 percent or greater chance of injury. As of September 2007, all new car window price stickers were required to show the NHTSA star ratings.

The New Tests
Originally scheduled for implementation on 2010 model-year vehicles, NHTSA announced a one-year postponement in December 2008 to give automakers extra time to prepare for the changes. The new tests are now scheduled for 2011 model-year vehicles. In addition to considering a new rear-collision test, NHTSA is devising changes to all three of its current tests.

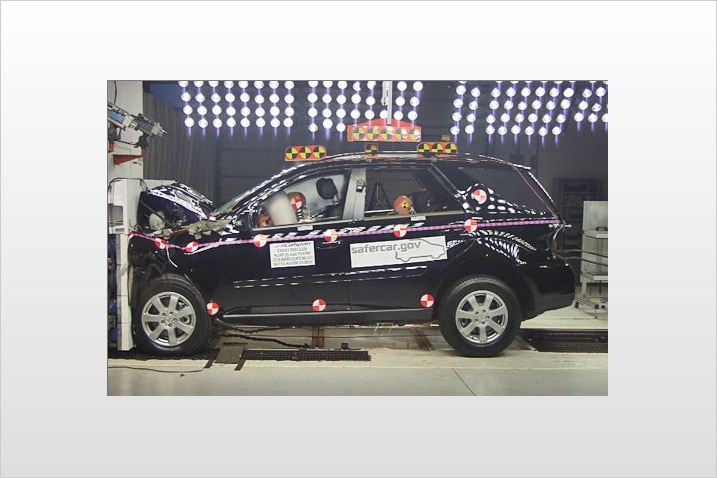

Under the current system, NHTSA's frontal impact test belts two adult-male-size crash test dummies into the front driver and passenger seats. The vehicle is then crashed into a fixed barrier at 35 mph head-on, measuring, in effect, the impact of two vehicles of similar weight hitting each other head-on.

Crash tests are also performed by the Insurance Institute for Highway Safety (IIHS), which conducts frontal offset tests by crashing the driver side of a vehicle's front end (40 percent of the total width) into a deformable barrier at 40 mph. The forces in the test are similar to those involved in a frontal offset crash between two vehicles of the same weight or size, each going just under 40 mph.

NHTSA will keep the current 35-mph frontal barrier test, but will revise its testing procedures to include smaller crash dummies, so women and larger children are represented. This new crash data will be used in calculating the frontal impact star rating.

Side-Impact
The current NHTSA side-impact test uses a 3,015-pound flat barrier with a deformable front end representing the front of a car. That barrier crashes into the side of a test car at a 90-degree angle, moving at 38.5 mph. The impact targets the driver and driver-side rear-seat occupant, using adult-male-size dummies.

Similar to improvements made to the frontal tests, NHTSA will keep the moving deformable barrier test, but will update its injury criteria for the chest, abdomen and pelvis. It will also add a new side-impact pole test that incorporates the smaller crash dummies. This test is designed to simulate wrapping a vehicle around a tree or lamppost. The side-impact safety rating will now be based on a combination of the pole and moving barrier test.

In real-world side impacts, women are more likely than men to suffer serious head injuries because they sit closer to the steering wheel, which positions their head in the middle of the side window. Men, who sit farther back, have a better chance of being protected by the B- (center) pillar. Using the smaller dummy will demonstrate the need for a side-airbag design that offers better protection for smaller drivers.

Rollover Testing
NHTSA conducts two rollover resistance tests that measure how a vehicle in a single-car crash responds when "tripped up" by a curb, guardrail or ditch. The so-called Static Stability tests measure the height of the car's center of gravity and the distance between the wheels. The results are a mathematical calculation of rollover risk for a tripped car — a car that goes off pavement into loose gravel or hits a curb. These are the most common causes of rollovers.

The dynamic maneuver test, also called the Fishhook test, measures rollover likelihood using a computerized steering program that gradually increases speed up to 50 mph. The exercise measures "tip up" (whether the wheels leave the ground when the car drives through a quick, tight turn), sort of a "dodge the deer" avoidance maneuver.

NHTSA will continue to test for rollovers under the new proposals, but will not revise its testing model until it gets more crash data on the effectiveness of electronic stability control in preventing rollovers. The new ratings program includes factors such as whether a vehicle has crash avoidance technologies such as electronic stability control, lane departure warning systems and forward collision warning systems. That data will be combined with the star ratings from the front, side and rollover tests to create a more comprehensive "Vehicle Safety Score."

What This Means to You
These testing procedures and their numerous changes may seem overwhelming, but they will reduce the inflated star ratings and lead to safer cars in the future. The enhancements to the NHTSA ratings will be reflected in vehicle window stickers, providing an easier way for consumers to compare the safety of vehicles they are considering.

Find safety features and crash test ratings for specific vehicles here on Edmunds.com or at Safercar.org.
